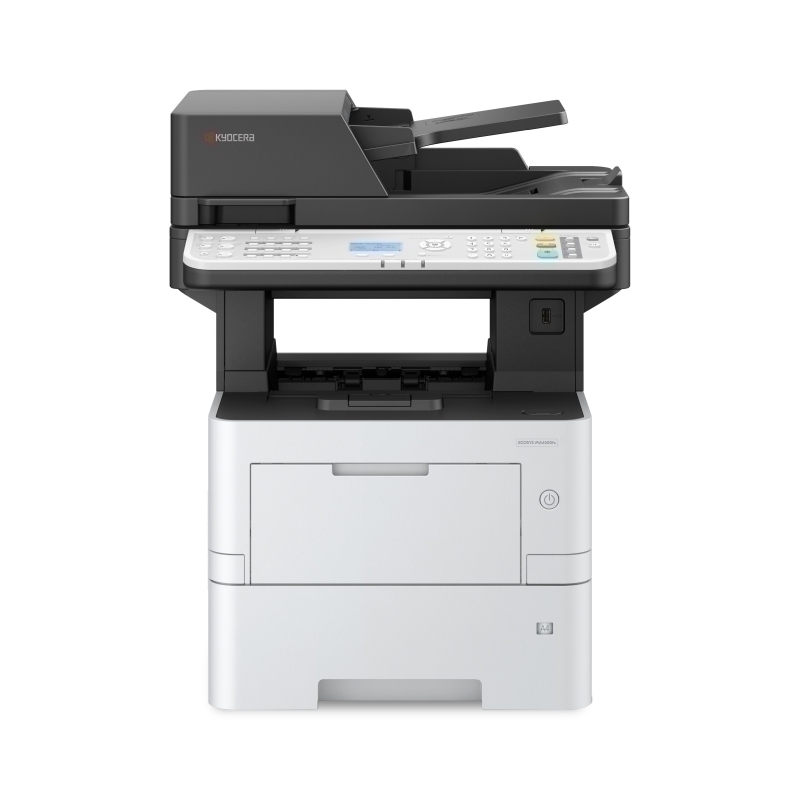

Kyocera MA4500fx Mona Laser Printer



ECOSYS MA4500FX

The ECOSYS MA4500fx is a powerful multifunctional device embedded with high-level security features. The rapid speed of up to 45 pages per minute contributes to the enhanced productivity of workgroups. In addition, it delivers exceptionally low running costs.

GENERAL	KYOCERA ECOSYS Laser Monochrome Multifunctional HyPAS™ solution platform ***FAX
Operation panel	177.8 mm (7 inch) full-colour touch panel display, speaker for job notification, Tilt Mechanism
Type	Desktop
Engine speed	Up to 45 pages A4 per minute
Duplex print speed	22.5 page per minute, A4
Duplex copy speed	22.5 page per minute, A4
Resolution	1200 x 1200 dpi (print); 600 x 600 dpi (scan/copy)
Recommended Average Print Volume	20,000 pages per month
Maximum Life	900,000 pages or 5 years
Scan Volume	max. 1,800 pages per month
Time to first print	Approx. 5.3 seconds or less
Time to first copy	Approx. 6 or less (DP)
Standard interfaces	:USB 2.0 (Hi-Speed), 1 x USB Host Interface, Gigabit Ethernet (10BaseT/100BaseTX/ 1000BaseT), optional Wireless LAN (IEEE 802.11b/g/n), 1 x eKUIO slot for optional internal print server or SSD hard disc, Slot for optional SD Card
Dimensions (W x D x H)	607 x 570 x 695 mm
Weight	30 kg
Warranty	2 Years

Full Specifications for Kyocera ECOSYS MA4500FX Mono Laser Printer



GENERAL

• Technology: KYOCERA ECOSYS Laser Monochrome Multifunctional with HyPAS™ solution platform
• Operation Panel: 177.8 mm (7 inch) full-colour touch panel display, with speaker for job notification and tilt mechanism.
• Type: Desktop
• Engine Speed (Simplex): Up to 45 pages A4 per minute.
• Engine Speed (Duplex): Up to 22.5 pages A4 per minute.
• Duplex Copy Speed: 22.5 pages A4 per minute.
• Resolution: 1200 x 1200 dpi (print); 600 x 600 dpi (scan/copy).
• Recommended Print Volume: 20,000 pages per month.
• Maximum Life: 900,000 pages or 5 years.
• Scan Volume: Max. 1,800 pages per month.
• Warm-up Time: Approx. 16 seconds or less.
• Time to First Print: Approx. 5.3 seconds or less.
• Time to First Copy: Approx. 6 seconds or less (document processor); Approx. 7 seconds or less (platen).
• CPU: ARM Cortex-A53 Dual core 1.4GHz.
• Memory: Standard 1GB; Max. 3GB (optional).
• Integrated Accounting: Supports up to 100 department codes.

INTERFACES AND CONNECTIVITY

• Standard Interfaces:
  • USB 2.0 (Hi-Speed)
  • 1 x USB Host Interface
  • Gigabit Ethernet (10BaseT/100BaseTX/1000BaseT)
  • Optional Wireless LAN (IEEE 802.11b/g/n)
  • 1 x eKUIO slot for optional internal print server or SSD hard disk
  • Slot for optional SD Card
• Mobile Printing Support:
  • KYOCERA Mobile Print app for iOS and Android
  • AirPrint
  • Mopria
  • Microsoft Universal Print
  • Optional Wi-Fi Direct

DIMENSIONS AND WEIGHT

• Dimensions (W x D x H):
  • Without Packaging: 475 x 476 x 575 mm (including protrusions).
  • With Packaging: 607 x 570 x 695 mm.
• Weight:
  • Without Packaging: Approx. 22.8 kg (with bundled toner); Approx. 22.3 kg (without bundled toner).
  • With Packaging: 30 kg.

POWER AND NOISE LEVEL

• Power Source: AC 220 ~ 240 V, 50/60 Hz.
• Power Consumption:
  • Printing: 594.1 W.
  • Copying: 606 W.
  • Ready Mode: 55.9 W.
  • Low Power Mode: 38.3 W.
  • Sleep Mode: 0.6 W.
• Noise Level (ISO 7779/ISO 9296):
  • Copying/Printing: 54 dB (A).
  • Standby: 30 dB (A).

PAPER HANDLING

• Input Capacity:
  • Multi-purpose Tray: 100 sheets, 60 to 220 g/m², A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 140 to 216 x 356 mm), Banner paper up to 915 mm.
  • Standard Universal Paper Cassette: 500 sheets, 60–120 g/m², A4, A5, B5, Letter, Legal, Folio, Custom (140 x 210 to 216 x 356 mm).
  • Max Input Capacity with Options: 2,600 sheets.
• Duplex: Standard duplex unit supporting 60 to 120 g/m², A4, A5, B5, Letter, Legal, Custom (140x 210 mm - 216 x 356 mm).
• Document Processor: Reverse Auto Document Processor (RADP) as standard, 75 sheets, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm).
• Output Capacity: Max. 250 sheets face down with paper full sensor.

PRINT FUNCTIONS

• Controller Language: PRESCRIBE.
• Emulations: PCL6 (5c/XL), KPDL3 (PostScript 3 compatible), PDF Direct Print, XPS Direct Print, AES support, TIFF/JPEG Direct Print, Open XPS, URF, PWG Raster, PCLm, Line Printer, IBM Proprinter, Epson LQ-850.
• Operating Systems: Supports all current Windows operating systems, MAC OS X 10.9 or higher, Chrome OS, Linux, and others upon request.
• Fonts/Barcodes: 93 outline fonts (PCL6, KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), 1 bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417).
• Print Features:
  • PDF Direct Print,
  • Internet printing IPP 1.0,
  • E-mail printing,
  • WSD print,
  • Secure printing IPP over TLS,
  • Local and network authentication,
  • Network data encryption (IPsec, HTTPS, LDAP over TLS),
  • SNMPv3, SMTP over TLS,
  • POP over TLS,
  • Encrypted PDF Direct Print,
  • TLS 1.3, Secure Boot, Run-time Integrity Check, Universal Print, Printing for Chrome OS.

COPY FUNCTIONS

• Max. Original Size: A4/Legal.
• Continuous Copying: 1–999 copies.
• Zoom Range: 25–400% in 1% steps.
• Preset Magnification Ratios: 7 Reductions / 5 Enlargements.
• Features:
  • Electronic sort (collate),
  • ID card copy,
  • 2in1, 4in1,
  • Auto cassette change,
  • Skip blank page,
  • Skip Line.

SCAN FUNCTIONS

• Scan Speed:
  • Simplex: 60 ipm (300 dpi, b/w); 40 ipm (300 dpi, colour).
  • Duplex: 26 ipm (300dpi, b/w); 17 ipm (300 dpi, colour).
• Scan Resolution: 600, 400, 300, 200 dpi; 256 greyscales per colour.
• Max. Scan Size: A4, Legal, Banner paper (max 915mm).
• File Types: TIFF/JPEG, XPS, Open XPS, PDF, PDF/A, PDF/A-1a/b, PDF/A-2a/b/u, Encrypted PDF, High compression PDF.
• Scan Features: Integrated address book, Active Directory support, encrypted data transfer, banner scanning, multi-send to e-mail, fax, SMB/FTP folder, print, blank page skip.

FAX FUNCTIONS

• Compatibility: Super G3.
• Modem Speed: Max. 33.6 kbps.
• Transmission Speed: Max. 3 seconds per page (JBIG).
• Address Book: 200 entries.
• Scanning Density:
  • Normal: 8 dot/mm x 3.85 line/mm (200 x 100 dpi).
  • Fine: 8 dot/mm x 7.7 line/mm (200 x 200 dpi).
  • Superfine: 8 dot/mm x 15.4 line/mm (200 x 400 dpi).
  • Ultrafine: 16 dot/mm x 15.4 line/mm (400 x 400 dpi).
• Halftone: 256 grey scales.
• Features: Network fax, duplex transmission/reception, encrypted transmission/reception, polling transmission/reception, and broadcast faxing.

CONSUMABLES

• Toner Kit: TK-3404 toner kit provides 12,500 pages (A4).
• Starter Toner: 6,000 pages (A4).

OPTIONS

• Paper Feeders: PF-3110 (500 sheets) up to 4 units.
• Cabinets:
  • CB-360W-B (storage cabinet with dimensions: 380 x 411 x 508 mm).
  • CB-365W-B (storage cabinet with dimensions: 380 x 411 x 254 mm).
• Caster Unit: CA-3100 for increased stability (mandatory for 4 optional paper feeders).
• Memory Upgrade: MM-21 (2GB), MM-20 (1GB).
• Storage Devices: SSD options (64GB, 256GB, 512GB).
• Security: Data Security Kit, UG-33 AC (ThinPrint support), UG-50 (TPM), IC Card Reader with Authentication Kit, CRH 10 (IC Card Reader Holder).
• Wireless LAN: IB-37 (Wireless LAN 802.11b/g/n, 2.4-GHz and 5-GHz with Wi-Fi Direct), IB-50 (Gigabit-Ethernet board), IB-51 (Wireless LAN Interface).

WARRANTY

• 2-year on-site as standard.

WHAT'S IN THE BOX

• Main unit, starter toner, waste toner box, quick guide, safety guide, operation panel sheet, power supply cord.
