LENOVO ThinkSystem ST250 V2 1x Xeon E-2324G 4C 3.1GHz 65W 1x16GB 2Rx8 SW RD 1x550W

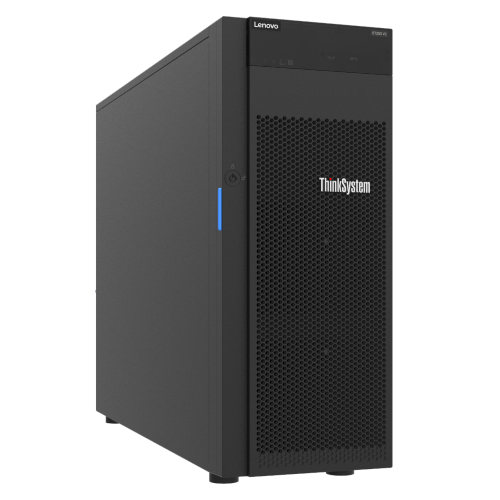

Lenovo ThinkSystem ST250 V2: High-Performance Tower Server for Growing Businesses

The Lenovo ThinkSystem ST250 V2, available at 7stores.au, is a versatile and powerful 1-socket tower server designed to meet the needs of small-to-medium businesses, remote offices, branch offices, and sectors like banking and public services. This server can also be rack-mounted, providing flexibility for a variety of IT environments. Engineered with enterprise-grade management features, the ST250 V2 delivers optimized performance, scalability, and robust security to support your growing business.

Powerful Processing with Intel Xeon E-2324G

At the heart of the ThinkSystem ST250 V2 is the Intel Xeon E-2324G processor—a quad-core (4-core) CPU operating at 3.1 GHz with a 65W TDP. Part of the latest Intel Xeon E-2300 Series (formerly "Rocket Lake"), this processor provides reliable performance for a wide range of business applications, ensuring your IT infrastructure runs smoothly and efficiently.

Flexible Memory and Storage Options

This configuration includes 16GB of TruDDR4 ECC memory (2Rx8), with support for up to 128GB of 3200 MHz TruDDR4 ECC memory across four DIMM slots. This memory setup ensures data integrity and high performance, making the ST250 V2 ideal for mission-critical workloads.

The ThinkSystem ST250 V2 offers extensive storage flexibility, supporting a variety of configurations to meet your specific needs:

• Up to 8x 3.5-inch hot-swap SATA/SAS drive bays for high-capacity storage
• Up to 16x 2.5-inch hot-swap SAS/SATA drive bays for performance-focused configurations
• Hybrid configurations that combine 4x 3.5-inch and 8x 2.5-inch hot-swap drives
• Optional M.2 mirroring kit for reliable OS boot with VROC RAID redundancy

These storage options allow you to optimize your server for either performance or capacity, depending on your business requirements.

Expandability and Connectivity for Future Growth

The ThinkSystem ST250 V2 is designed with expandability in mind, featuring four PCIe expansion slots:

• 1x PCIe Gen4 x16 slot for high-performance GPUs or I/O cards
• 3x PCIe Gen3 slots (x4 lanes) for additional I/O expansion

This expandability ensures that your server can adapt as your business grows, making it a future-proof investment. The server also includes dual integrated Gigabit Ethernet ports (Broadcom BCM5720) and an additional 1 GbE port dedicated to Lenovo XClarity Controller (XCC) management, providing reliable and scalable network connectivity.

Enterprise-Grade Manageability and Security

The ThinkSystem ST250 V2 comes equipped with Lenovo XClarity Controller and Lenovo XClarity Provisioning Manager, offering comprehensive systems management and streamlined deployment. These tools simplify the setup, integration, service, and ongoing management of your server, reducing operational complexity and improving efficiency.

For enhanced security, the ST250 V2 includes an embedded TPM 2.0 module for hardware-based security, an optional lockable front bezel, and a chassis intrusion switch to protect against unauthorized access.

Energy-Efficient Design for Remote Offices

The ST250 V2 is designed for environments with minimal IT support, such as remote offices or branch locations. Its compact footprint and office-quiet cooling system make it suitable for deployment in space-constrained settings. The server also features a 550W hot-swap power supply for reliable operation, ensuring continuous uptime even during critical workloads.

Operating System Compatibility

The Lenovo ThinkSystem ST250 V2 supports a variety of operating systems, ensuring seamless integration into your existing IT infrastructure. Supported operating systems include:

• Microsoft Windows Server 2022
• Red Hat Enterprise Linux (versions 8.4, 8.7, 9.0, 9.1, 9.2)
• SUSE Linux Enterprise Server (15 SP3, 15 SP4)
• VMware vSphere

Detailed Specifications

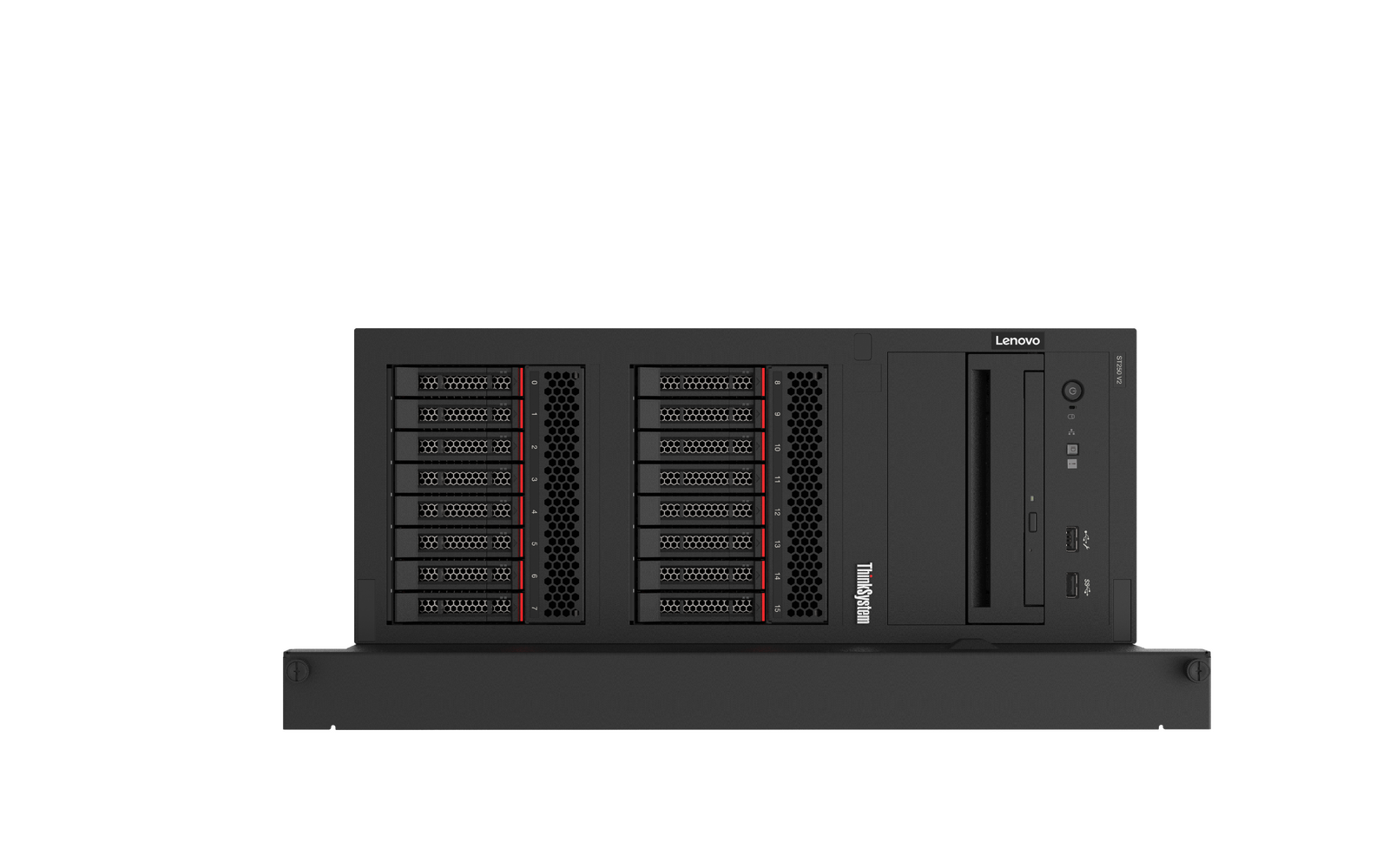

• Form Factor: 4U tower chassis; Height: 430mm (16.9 inches), Width: 175mm (6.9 inches), Depth: 566mm (22.3 inches)
• Processor: 1x Intel® Xeon® E-2324G, 4 cores, 3.1 GHz, 65W TDP
• Memory: 16GB TruDDR4 ECC (2Rx8), supports up to 128GB in 4x DIMM slots
• Storage Options:
  • 8x 3.5-inch hot-swap SATA/SAS drive bays
  • 16x 2.5-inch hot-swap SAS/SATA drive bays
  • Hybrid 4x 3.5-inch + 8x 2.5-inch hot-swap SAS/SATA drives
  • Optional M.2 mirroring kit
• Expansion Slots:
  • 1x PCIe Gen4 x16 slot
  • 3x PCIe Gen3 x4 slots
• Network Interface:
  • 2x GbE on-board ports (Broadcom BCM5720)
  • 1x GbE port dedicated for XCC management
• Ports:
  • Front: 1x USB 3.2 G2 (10Gbps), 1x USB 2.0 for local management using XCC Mobile app

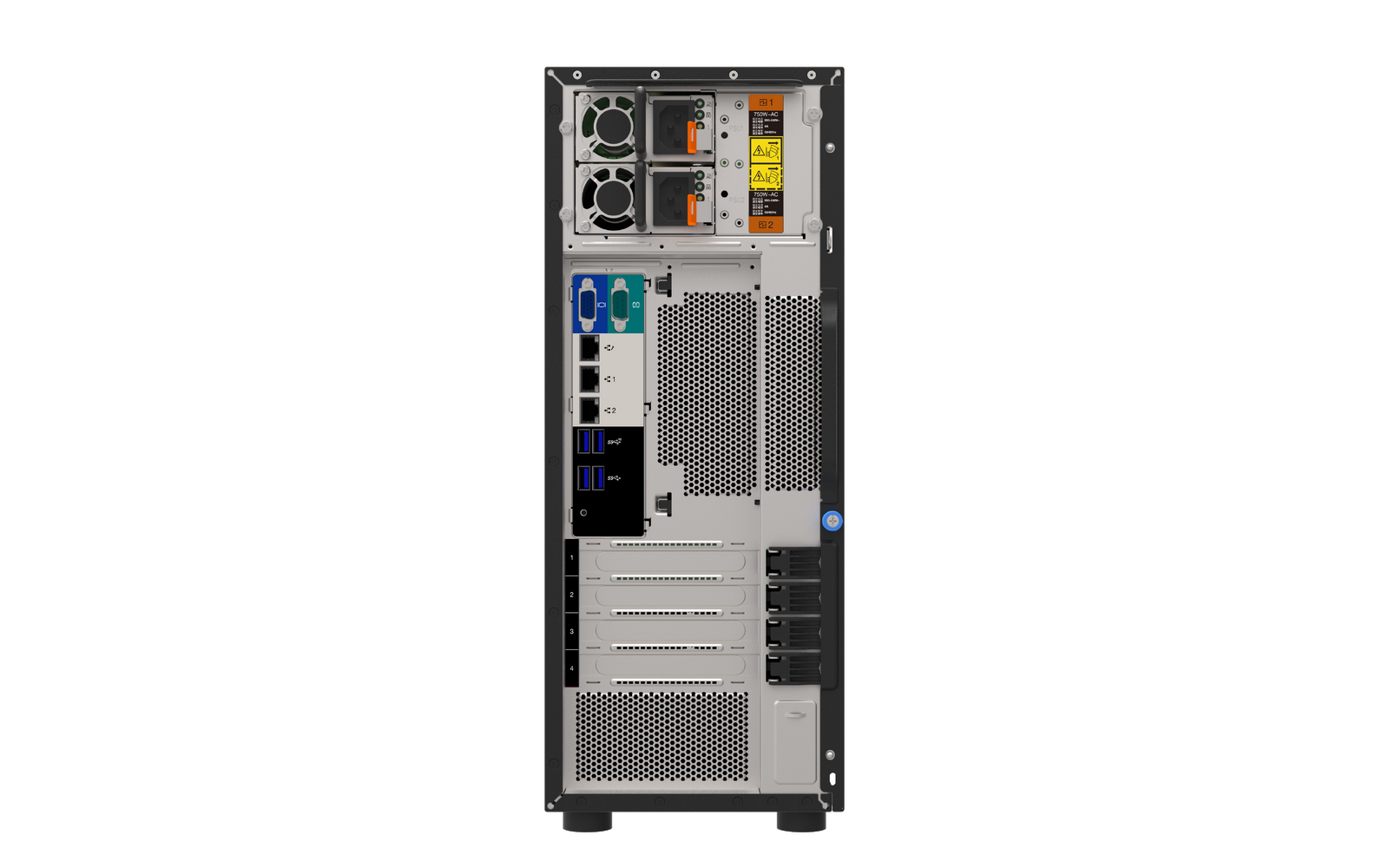

  • Rear: 4x USB 3.2 G2 (10Gbps), 2x RJ45 Gigabit Ethernet ports, 1x Serial port, 1x VGA port
• Security Features:
  • Embedded TPM 2.0
  • Optional lockable front bezel, chassis intrusion switch
• Power Supply: 550W hot-swap power supply
• Operating System Support: Microsoft Windows Server 2022, Red Hat, SUSE, VMware vSphere

Why Choose the Lenovo ThinkSystem ST250 V2?

The Lenovo ThinkSystem ST250 V2, available at 7stores.au, is the ideal server solution for small-to-medium businesses that need a flexible, scalable, and secure tower server. With its powerful Intel Xeon E-2324G processor, robust memory and storage options, and enterprise-grade management features, this server is designed to meet the demands of your growing business while providing the reliability and performance you need to stay competitive.

Equip your business with the Lenovo ThinkSystem ST250 V2 and experience the benefits of enterprise-level technology in a compact, versatile package.
