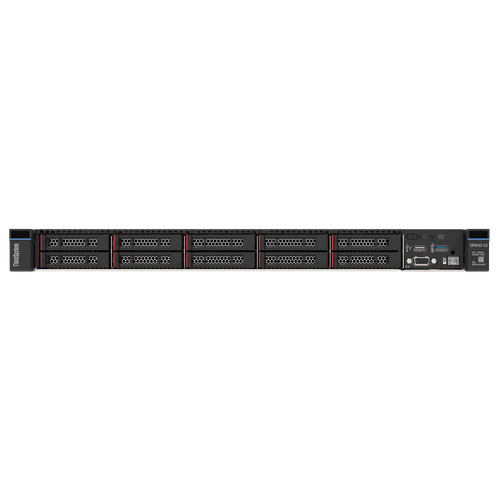

Lenovo ThinkSystem SR630 V3 7D73 - Server - rack-mountable - 1U - 2-way - 1 x Xeon Silver 4410Y / 2 GHz - RAM 16 GB - SAS - hot-swap 2.5" bay(s) - no HDD - AST2600 - no OS - monitor: none

Lenovo ThinkSystem SR630 V3 Server – Unleashing Unmatched Performance and Flexibility

The Lenovo ThinkSystem SR630 V3, part number 7D73A01RAU, represents the pinnacle of 1U rack server design, delivering unparalleled performance, flexibility, and reliability for businesses of all sizes. This server is built to excel in a broad spectrum of demanding workloads, including databases, virtualization, cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, web services, streaming media, and high-performance computing (HPC).

Unrivaled Performance with 4th Gen Intel® Xeon® Scalable Processors

At the heart of the ThinkSystem SR630 V3 is the cutting-edge 4th Gen Intel® Xeon® Scalable processors, including the Intel Xeon Silver 4410Y with 12 cores and 30MB cache, providing a 2.0 GHz base frequency. This server delivers up to 59% improved performance over the previous generation, ensuring that your business can handle even the most intensive applications with ease.

• Processor: Dual-socket support for up to 2x 4th Gen Intel® Xeon® Scalable processors, offering up to 60 cores per server, with a maximum TDP of 350W per processor.
• Memory: Supports up to 32x TruDDR5 DIMMs, with a total capacity of 8TB of DDR5 memory running at 4800MHz, delivering lightning-fast data processing and reduced latency.

Advanced Storage and Expansion Capabilities

The ThinkSystem SR630 V3 offers highly flexible storage options to meet the diverse needs of modern IT environments. Whether your application requires high-capacity storage or ultra-fast access times, this server can be tailored to your requirements.

• Storage:

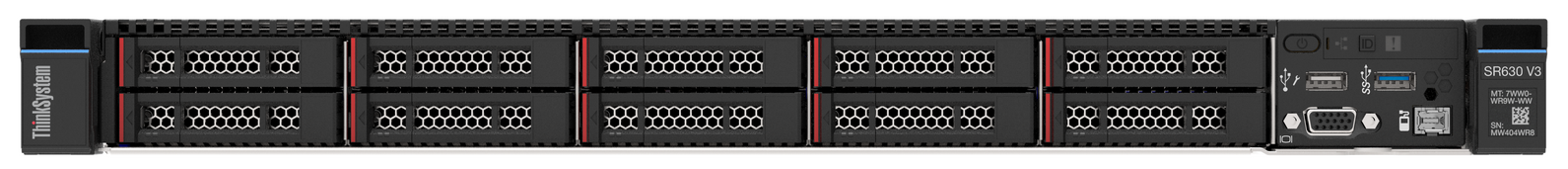

  • Front: Up to 4x 3.5”, 10x 2.5”, or 16x EDSFF E1.S hot-swap drives.

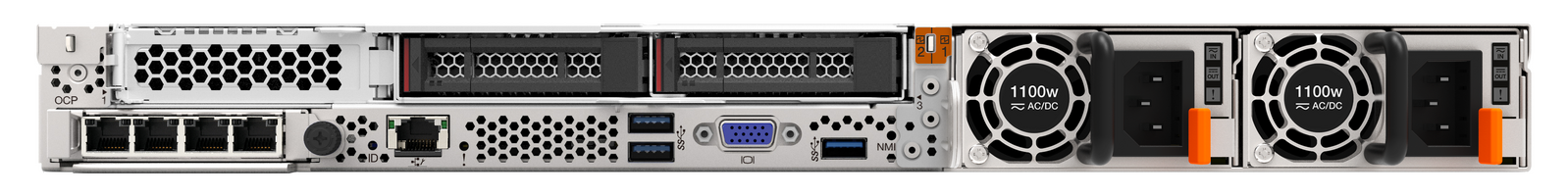

  • Rear: 2x 2.5” 7mm SATA/NVMe hot-swap boot drives.
  • Internal: 2x M.2 SATA/NVMe boot drives, with RAID support for added redundancy.
  • Direct NVMe support for unparalleled data throughput.
• Expansion Slots:
  • Up to 5x PCIe 4.0/5.0 slots, providing increased I/O bandwidth.
  • 1x OCP 3.0 slot for network interface expansion.
  • Support for up to 3x single-width 75W GPUs, perfect for AI/ML, HPC, and graphics-intensive workloads.

Optimized for High-Performance Computing (HPC) and Next-Gen Workloads

The ThinkSystem SR630 V3 is designed to meet the demands of the next generation of IT workloads, including High-Performance Computing (HPC), 5G/Networking, Artificial Intelligence (AI)/Machine Learning (ML), and cloud-based applications.

• Enhanced I/O: The inclusion of PCIe Gen5 technology provides a substantial boost in data transfer speeds, ensuring that your infrastructure is future-proofed for the most demanding applications.
• Scalable Storage: With multiple drive options and support for Direct NVMe, the SR630 V3 offers flexible and scalable storage configurations that can grow with your business.
• Neptune™ Liquid Cooling: Lenovo’s revolutionary Neptune™ liquid cooling technology reduces power consumption while maintaining optimal performance. This innovative cooling solution has been expanded to support GPUs in select models, making the SR630 V3 one of the most energy-efficient servers on the market.

Comprehensive Security and Easy Management with Lenovo ThinkShield

Security is paramount in today’s IT landscape, and the ThinkSystem SR630 V3 comes equipped with Lenovo ThinkShield security features that protect your server at every level.

• ThinkShield Security: Comprehensive protection from the supply chain to the cloud, including Chassis Intrusion Switch, TPM 2.0, Platform Firmware Resiliency (PFR), and secure BIOS.
• Lenovo XClarity Controller (XCC): Simplifies management with an intuitive interface that streamlines deployment, monitoring, and maintenance. XClarity also enhances security by monitoring log events and offering three security modes to choose from.

Key Specifications

• Form Factor: 1U rack server
• Processor: Up to 2x 4th Gen Intel® Xeon® Scalable processors, up to 60 cores and 350W TDP.
• Memory: Supports up to 32x TruDDR5 DIMMs, with up to 8TB capacity.
• Drive Bays:
  • Front: Up to 4x 3.5”, 10x 2.5”, or 16x EDSFF E1.S hot-swap drives.
  • Rear: 2x 2.5” 7mm SATA/NVMe hot-swap boot drives.
  • Internal: 2x M.2 SATA/NVMe boot drives, with RAID support.
• Expansion Slots: Up to 5x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot.
• Network Interface: LOM adapter installed in the OCP 3.0 slot, optional for front-access networking PCIe adapters.
• Power Supply: Dual redundant AC & DC; options include 750W, 1100W, and 1800W.
• Security: Chassis intrusion switch, TPM 2.0, Platform Firmware Resiliency (PFR).
• Management: Lenovo XClarity Controller (XCC) with optional Advanced or Enterprise licenses.
• Operating Systems Supported:
  • Windows Server 2022
  • SUSE Linux Enterprise Server 15 SP4
  • Ubuntu 22.04 LTS
  • Red Hat Enterprise Linux 9.1
  • VMware
• Warranty: 3-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) support.

Why Choose the Lenovo ThinkSystem SR630 V3?

The Lenovo ThinkSystem SR630 V3, available at 7stores.au, is designed for businesses that demand top-tier performance, flexibility, and security. Whether you're managing complex IT infrastructures, virtual environments, or cloud computing workloads, this server offers the scalability and efficiency you need.

7stores.au provides a comprehensive range of configurations for the ThinkSystem SR630 V3, allowing you to customize your server to meet your specific needs. Explore more about this cutting-edge server and make a purchase today at 7stores.au.

Upgrade your IT infrastructure with the Lenovo ThinkSystem SR630 V3 and ensure your business is equipped for the challenges of today and tomorrow.
