Lenovo ThinkSystem SR650 V3 Server - Optimized Performance and Scalability for Modern Enterprises - Now Available at 7stores.au

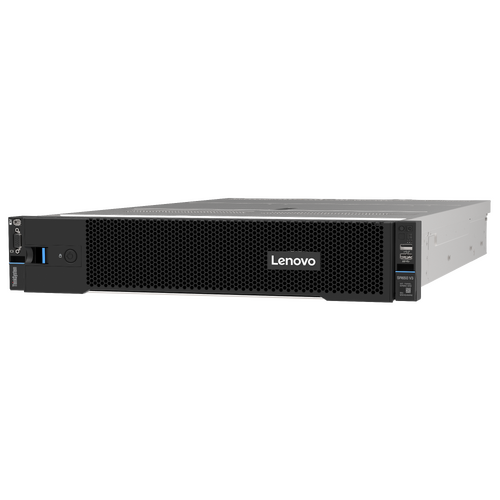

The Lenovo ThinkSystem SR650 V3 is a top-tier 2-socket, 2U rack server meticulously designed to deliver unmatched performance, reliability, and scalability for businesses ranging from small startups to large enterprises. This server is the cornerstone of any robust IT infrastructure, providing the flexibility to handle diverse and demanding workloads. Whether your business requires support for databases, virtualization, cloud computing, AI/ML applications, or high-performance computing (HPC), the SR650 V3 is engineered to meet and exceed those needs.

Unparalleled Processor and Memory Performance

At the heart of the ThinkSystem SR650 V3 lies the Intel Xeon Silver 4410Y processor. This 12-core, 4th Gen Intel Xeon Scalable CPU operates at a base frequency of 2.0 GHz, with a substantial 30 MB cache that ensures fast and efficient processing of complex tasks. The server supports up to two processors, allowing businesses to scale their computing power as needed.

• Processor Type: Intel Xeon Silver 4410Y
• Processor Speed: 2.0 GHz
• Processor Core: 12 cores (Dodeca-core)
• Cache: 30 MB
• Processor Generation: 4th Gen Intel Xeon Scalable
• Maximum Processors Supported: 2

In terms of memory, the SR650 V3 is equipped with 32 GB of DDR5 TruDDR5 ECC RAM. This server supports up to 8 TB of memory, with a total of 32 DIMM slots available. The inclusion of ECC (Error-Correcting Code) memory ensures data integrity, making it ideal for mission-critical applications.

• Memory Type: TruDDR5 ECC RAM
• Standard Memory: 32 GB (1 DIMM slot occupied)
• Maximum Memory Supported: 8 TB
• Total Memory Slots: 32

Versatile and Expandable Storage Solutions

The ThinkSystem SR650 V3 offers remarkable storage flexibility, accommodating a wide array of storage configurations to meet diverse workload requirements. The server supports up to 40x 2.5” drives or 20x 3.5” drives, providing ample space for both high-capacity and high-performance storage solutions. For businesses requiring ultra-fast data access, the SR650 V3 can be equipped with up to 36x NVMe drives using PCIe retimer adapters.

• Drive Bays: Up to 40x 2.5” drives or 20x 3.5” drives
• NVMe Support: Up to 36x NVMe drives
• Boot Drive Options: 2x M.2 SATA/NVMe drives with RAID support
• RAID Support: Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10)

This server also features AnyBay™ storage, which allows businesses to customize drive configurations with a mix of SAS, SATA, or NVMe drives within the same drive bay. This flexibility makes it easy to adapt to changing storage needs without significant hardware changes.

Advanced GPU and Expansion Capabilities

For businesses requiring GPU acceleration, the SR650 V3 supports up to 8x single-width GPUs or 3x double-width GPUs. This capability is particularly beneficial for AI/ML workloads, data analytics, and HPC environments.

• GPU Support: Up to 8x single-width GPUs or 3x double-width GPUs
• Expansion Slots: Up to 12x PCIe 4.0/5.0 slots, including 1x OCP 3.0 slot
• Internal RAID Adapter: 1x cabled internal HBA/RAID adapter

Comprehensive Network and I/O Options

The ThinkSystem SR650 V3 offers a wide range of networking and I/O options to ensure seamless connectivity and data transfer. The server comes with a LOM (LAN on Motherboard) adapter installed in the OCP 3.0 slot, providing high-speed network connectivity. Additional front-access networking PCIe adapters can be added for enhanced flexibility.

• Network Interface: LOM adapter installed in OCP 3.0 slot
• I/O Ports:

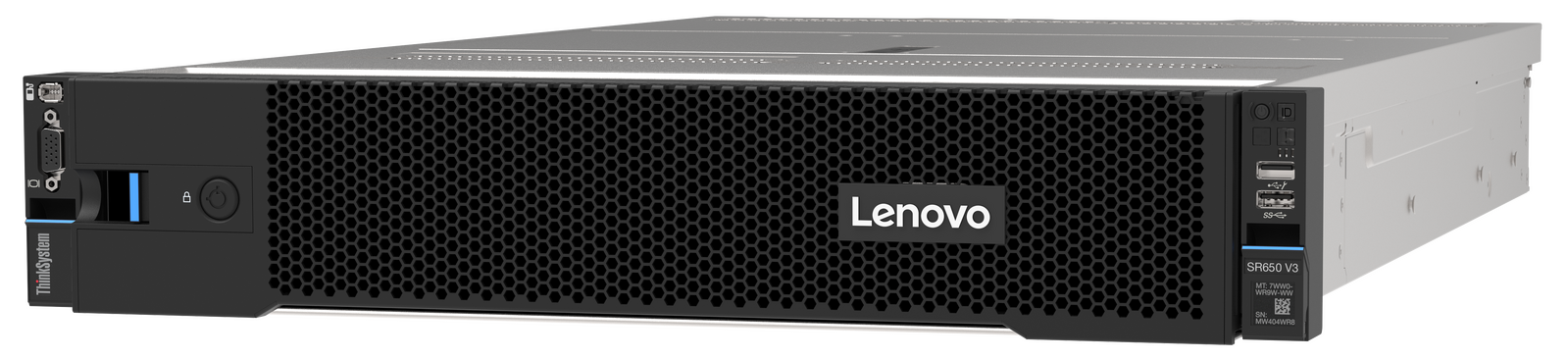

  • Front: 1x USB 3.1 Gen 1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port (optional)
  • Rear: 3x USB 3.1 Gen 1, 1x VGA, 1x 1GbE RJ-45 (management), 1x Serial port (optional), 2nd 1GbE management port (optional in OCP slot)

Robust Power Supply and Energy Efficiency

The server’s power is supplied by a 750W hot-swappable, redundant power supply that supports both AC and DC inputs. For businesses with varying power needs, the SR650 V3 offers multiple power supply options, including Platinum and Titanium-rated units.

• Power Supply: 750W, hot-swappable, redundant
• Power Supply Options: 750W PT/TT, 1100W PT/TT, 1800W PT/TT, 2400W PT, 2600W TT, and 1100W -48V DC PT

The ThinkSystem SR650 V3 is also Energy Star certified, ensuring that it meets stringent energy efficiency standards, which can significantly reduce operational costs.

Superior Management and Security Features

Managing the ThinkSystem SR650 V3 is straightforward with the Lenovo XClarity Controller. This advanced system management solution simplifies server management, enhances efficiency, and provides comprehensive security features to protect your IT infrastructure.

• System Management: Lenovo XClarity Controller
• Security Features:
  • Chassis intrusion switch
  • Power-on and administrator's password
  • Root of Trust module with TPM 2.0
  • Optional lockable front security bezel

Operating System Compatibility

The SR650 V3 is compatible with a wide range of operating systems, including Windows Server 2022, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware, and Windows 11 Pro. This versatility ensures that the server can integrate seamlessly into existing IT environments.

• Supported Operating Systems:
  • Windows Server 2022
  • Red Hat Enterprise Linux 8.6/8.7/9.1
  • SUSE Linux Enterprise Server 15 SP4
  • Ubuntu 22.04 LTS
  • Windows 10 Pro
  • VMware

Built for Reliability and Future Growth

The Lenovo ThinkSystem SR650 V3 is designed with the future in mind. With its high-performance components, scalable architecture, and robust management and security features, this server is an ideal choice for businesses looking to build a reliable, future-proof IT infrastructure. Whether you’re managing complex workloads or preparing for future growth, the SR650 V3 is equipped to deliver.

Available Now at 7stores.au

For businesses seeking a powerful and flexible server solution, the Lenovo ThinkSystem SR650 V3 is available now at 7stores.au. Explore our range of configurations and find the perfect server to meet your business needs.

Make sure to check out 7stores.au for the best deals on the Lenovo ThinkSystem SR650 V3 and other enterprise IT solutions.
