Lenovo ThinkCentre M70s Gen 5 SFF Desktop | Intel i7-14700, 16GB DDR5, 512GB SSD, W11P | 12U30018AU



Lenovo ThinkCentre M70s Gen 5 SFF Desktop - Intel i7-14700, 16GB DDR5 RAM, 512GB SSD, Windows 11 Pro | Ultimate Performance for Modern Enterprises

The Lenovo ThinkCentre M70s Gen 5 Small Form Factor (SFF) desktop is engineered to deliver exceptional performance and reliability for today's demanding business environments. Powered by the advanced Intel® Core™ i7-14700 processor, featuring 20 cores (8 Performance + 12 Efficiency) and 28 threads, this desktop can effortlessly handle intensive workloads. With a Max Turbo speed of up to 5.4GHz, it ensures lightning-fast responsiveness for all your computing needs.

Key Features:

  • Processor: Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, with Max Turbo up to 5.4GHz, providing the power to tackle complex tasks and applications with ease.
  • Graphics: Integrated Intel® UHD Graphics 770, delivering smooth visuals for HD video playback, image editing, and advanced office applications.
  • Memory: 16GB DDR5-5600 RAM (2x 8GB) with dual-channel capability, offering high-speed multitasking and the ability to upgrade to a maximum of 64GB for future-proof performance.
  • Storage: 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0, ensuring fast boot times, quick data access, and ample storage for essential files. Expandable with additional storage options, including up to 2TB M.2 SSDs and 3.5" HDDs.
  • Connectivity: Integrated Intel® Wi-Fi® 6 AX201, Bluetooth® 5.2, and Gigabit Ethernet for reliable and fast networking. Equipped with multiple USB ports, including USB-C® for 15W charging, and both HDMI® 2.1 and DisplayPort™ 1.4a for versatile display connectivity.
  • Security: Discrete TPM 2.0 chip, TCG and FIPS 140-2 certified, providing robust security features to protect your business data. Additional physical security options include Kensington® Security Slot™ and padlock loop.
  • Operating System: Pre-installed with Windows® 11 Pro, offering a secure, user-friendly environment for all your business applications.

Compact Design, Enterprise-Grade Reliability Despite its compact 8.2L form factor, the ThinkCentre M70s Gen 5 SFF packs a punch with top-tier performance and robust features, making it perfect for offices where space is at a premium. Built on the Intel® Q670 chipset, this desktop provides a stable and secure platform for your business operations.

The system is engineered for durability, passing MIL-STD-810H military-grade tests, including assessments for high temperatures, vibrations, and more, ensuring reliable performance in diverse environments. The high-definition audio powered by the Realtek® ALC623-CG codec and built-in speaker deliver clear sound quality for everyday use.

Expandability and Green Certifications The ThinkCentre M70s Gen 5 offers ample room for expansion, with multiple PCIe® slots and storage options to accommodate growing business needs. It’s also environmentally conscious, boasting ENERGY STAR® 8.0 certification, EPEAT™ Gold registration, and TCO Certified 9.0. Additionally, it’s GREENGUARD® certified and RoHS compliant, making it a sustainable choice for eco-conscious businesses.

Dimensions and Weight

  • Form Factor: SFF (8.2L)
  • Dimensions (WxDxH): 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
  • Weight: Around 5.3 kg (11.7 lbs)

Conclusion The Lenovo ThinkCentre M70s Gen 5 SFF Desktop is the ultimate solution for businesses seeking a compact yet powerful desktop that delivers unmatched performance, security, and reliability. With its cutting-edge Intel i7-14700 processor, high-speed DDR5 memory, and comprehensive connectivity options, this desktop is designed to meet the challenges of modern business environments.

Lenovo ThinkCentre M70s Gen 5 SFF Desktop | Full Specifications



Overview

The Lenovo ThinkCentre M70s Gen 5 Small Form Factor (SFF) Desktop delivers outstanding performance and reliability, making it ideal for demanding business environments. With the power of the Intel® Core™ i7-14700 processor, robust memory, and fast storage, this desktop is engineered to handle modern business workloads seamlessly. Featuring a compact design, it combines enterprise-grade reliability with space efficiency.



Specifications

Processor

  • Model: Intel® Core™ i7-14700
  • Cores & Threads: 20 Cores (8 Performance + 12 Efficiency), 28 Threads
  • Base Clock Speed: 2.1 GHz (Efficiency cores)
  • Max Turbo Speed: Up to 5.4 GHz (Performance cores)
  • Cache: 30MB Intel Smart Cache
  • Chipset: Intel® Q670

Graphics

  • Integrated Graphics: Intel® UHD Graphics 770
  • Supported Resolutions:
    • 4K UHD support
    • Full HD support for office tasks, HD video, and multimedia content

Memory

  • Installed Memory: 16GB DDR5-5600 RAM (2 x 8GB)
  • Max Memory: Up to 64GB DDR5
  • Memory Slots: Dual-channel support, 2 DIMM slots
  • Memory Type: DDR5-5600, high-speed multitasking, and future-proof performance

Storage

  • Primary Storage: 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
  • Expandability:
    • Additional M.2 Slot: Supports up to 2TB M.2 SSD
    • 3.5" HDD Bay: Expandable with 3.5" SATA HDD (up to 2TB)

Networking & Connectivity

  • Wi-Fi: Intel® Wi-Fi 6 AX201 (Gig+), 802.11ax 2x2
  • Bluetooth: Bluetooth® 5.2
  • Ethernet: Gigabit Ethernet (10/100/1000M)

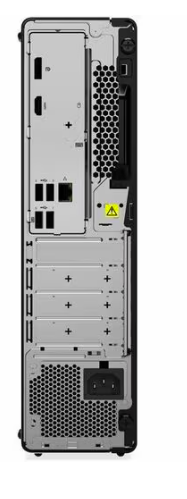

Ports & Slots

  • Front Ports:
    • 2 x USB 3.2 Gen 1 Type-A
    • 1 x USB-C® 3.2 Gen 1 (15W charging support)
    • Headphone / microphone combo jack
  • Rear Ports:
    • 4 x USB 3.2 Gen 1 Type-A
    • 2 x USB 2.0 Type-A
    • 1 x HDMI 2.1
    • 1 x DisplayPort™ 1.4a
    • 1 x Ethernet (RJ-45)
    • Optional expansion with additional PCIe slots

Operating System

  • Pre-installed OS: Windows 11 Pro 64-bit

Security

  • TPM: Discrete TPM 2.0 chip, TCG and FIPS 140-2 certified
  • Physical Security: Kensington® Security Slot™ and padlock loop
  • Additional Security Features:
    • BIOS-based smart USB protection
    • Secure Boot
    • Support for Intel vPro® technology (select models)

Audio

  • Audio Chipset: Realtek® ALC623-CG codec
  • Speaker: Built-in mono speaker
  • Audio Features: High-definition audio, clear sound quality

Design & Build

  • Form Factor: Small Form Factor (SFF), 8.2L
  • Dimensions (WxDxH): 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
  • Weight: Approx. 5.3 kg (11.7 lbs)

Durability & Reliability

  • Tested for Durability: MIL-STD-810H military-grade certified for temperature, vibration, and shock resistance
  • Cooling: Efficient thermal management for continuous performance

Power Supply

  • Power Adapter: 260W 85% PSU or 310W 92% PSU (depending on configuration)

Expandability

  • PCIe Slots: Multiple PCIe slots for additional graphics cards, storage, or networking upgrades
  • Drive Bays: Supports additional 3.5” and 2.5” drives

Certifications & Green Compliance

  • Energy Certifications:
    • ENERGY STAR® 8.0
    • EPEAT™ Gold
    • TCO Certified 9.0
  • Green Certifications:
    • GREENGUARD® Certified
    • RoHS Compliant
    • CO2 Offset option

Conclusion

The Lenovo ThinkCentre M70s Gen 5 SFF Desktop offers a perfect balance of power, security, and expandability in a compact form. It’s ideal for modern businesses that need a powerful machine capable of handling multitasking, high-demand applications, and enterprise-level security, all while occupying minimal desk space. Whether for small businesses or large enterprises, this desktop provides the ultimate computing solution.

Why Buy from 7Stores.au?

Shop confidently at 7stores.au for exclusive deals on Lenovo ThinkCentre desktops, expert support, and fast delivery across Australia.

SKU 12U30018AU
Barcode # 198154493110
Brand Lenovo
Shipping Weight 5.0000kg
