LENOVO ThinkSystem SR250 V2 1x Xeon E-2324G 4C 3.1GHz 65W 1x16GB 2Rx8 SW RD 1x450W

Lenovo ThinkSystem SR250 V2: Unleash Performance, Scalability, and Security for Growing Businesses

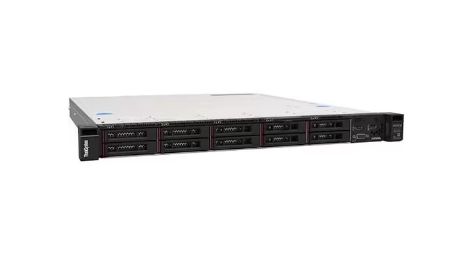

The Lenovo ThinkSystem SR250 V2 is a cutting-edge, single-socket 1U rack server designed to meet the evolving demands of small to medium-sized businesses and edge deployments. With a focus on enterprise-class reliability, flexibility, and robust security features, this server is engineered to provide optimized performance that scales with your business needs. Available at 7stores.au, the ThinkSystem SR250 V2 is an ideal choice for organizations seeking a cost-effective yet powerful solution for their IT infrastructure.

High-Performance Processing Power

At the heart of the ThinkSystem SR250 V2 lies a powerful Intel Xeon E-2324G processor. This processor features 4 cores with a base clock speed of 3.1 GHz and a thermal design power (TDP) of 65W, making it capable of handling a wide range of demanding workloads. The server also supports the entire Intel Xeon E-2300 Series ("Rocket Lake-E") and Intel Pentium ("Comet Lake Refresh") processors, providing you with the flexibility to choose the right processing power for your specific applications.

Memory and Storage Capabilities for Demanding Workloads

The ThinkSystem SR250 V2 supports up to 128 GB of TruDDR4 ECC memory with speeds of 3200 MHz. This memory configuration ensures that your applications run smoothly, with high data integrity and minimal downtime. The server is equipped with 1x 16GB 2Rx8 TruDDR4 ECC UDIMM by default, offering a strong starting point for memory-intensive applications.

In terms of storage, the ThinkSystem SR250 V2 offers versatile and scalable storage options. It supports up to ten 2.5-inch hot-swap SATA/SAS drives or four 3.5-inch hot-swap drives, allowing you to configure the server to meet either performance or capacity requirements. For organizations that need rapid access to critical data, the server can also accommodate NVMe PCIe SSDs for superior I/O performance. Additionally, an optional SATA Mirrored M.2 boot drive kit provides reliable OS boot support with VROC RAID redundancy.

Advanced Expandability and Connectivity

The Lenovo ThinkSystem SR250 V2 is designed with future-proof expandability in mind. It features two PCIe Gen4 x8 slots or one PCIe Gen4 x16 slot for high-speed I/O expansion, ensuring that your server can scale as your business grows. The server also includes one PCIe Gen4 x8 (x4 interface) internal RAID slot, offering advanced storage configuration capabilities to meet your unique needs.

For network connectivity, the ThinkSystem SR250 V2 is equipped with 2x integrated Gigabit Ethernet ports (Broadcom BCM5720), providing reliable and secure connections. A dedicated 1 GbE port for Lenovo XClarity Controller (XCC) management ensures that your server's performance can be managed and monitored with ease, keeping your IT infrastructure running smoothly.

Enterprise-Class Management and Security

Security and management are paramount in the ThinkSystem SR250 V2. The server includes the Lenovo XClarity Controller, which offers advanced service processor control, monitoring, and alerting functions. This feature is essential for maintaining high availability and uptime, particularly in mission-critical environments. The Lenovo XClarity Controller simplifies the management of your server, allowing you to automate foundational tasks and centrally manage your entire IT infrastructure.

Security is further enhanced by the inclusion of Intel® Software Guard Extensions (SGX), which protects your most sensitive application code and data. The embedded TPM 2.0 module provides an additional layer of security, safeguarding your data from unauthorized access. For physical security, an optional front security bezel can be added to protect against tampering.

Energy Efficiency and Compact Design

In today’s environmentally conscious world, energy efficiency is a critical consideration. The ThinkSystem SR250 V2 supports a single 450W fixed power supply or an optional pair of redundant hot-swap power supplies, offering flexibility in power management. The server’s compact 1U form factor with a depth of just 498mm makes it ideal for space-constrained environments, such as small business offices, remote branches, or edge deployments.

Despite its small footprint, the ThinkSystem SR250 V2 does not compromise on performance. It supports processors up to 95W, delivering the performance you need while maintaining energy efficiency. This makes the server an ideal solution for businesses that need high performance in a compact, energy-efficient package.

Versatile Operating System Support

The ThinkSystem SR250 V2 is designed to be versatile and adaptable, supporting a wide range of operating systems to suit your specific needs. It is compatible with Microsoft Windows Server 2022, Red Hat, SUSE, and VMware ESXi. This broad compatibility ensures that you can integrate the server seamlessly into your existing IT environment, regardless of your preferred platform.

Detailed Specifications

• Form Factor: 1U rack; Height: 43mm (1.7 inches), Width: 435mm (17.1 inches), Depth: 498mm (19.6 inches)
• Processor: 1x Intel® Xeon® E-2324G or 1x Intel® Pentium® processor, up to 8 cores at 95W
• Memory: Up to 128GB in 4x DIMM slots using 32GB UDIMMs 3200MHz TruDDR4
• Disk Bay Combinations:
  • 4x 3.5-inch simple-swap SATA drives
  • 3x 3.5-inch simple-swap SATA drives plus 1x 3.5-inch simple-swap NVMe drive
  • 4x 3.5-inch hot-swap SATA/SAS drives
  • 8x 2.5-inch hot-swap SATA/SAS drives
  • 10x 2.5-inch hot-swap SATA/SAS drives
  • Optional SATA Mirrored M.2 boot drive kit; installs in a PCIe slot
• Expansion Slots:
  • 2x PCIe Gen4 x8 slots or 1x PCIe Gen4 x16 slot
  • 1x PCIe Gen4 x8 (x4 interface) internal RAID slot
• RAID Support: Intel® VROC Software RAID supports simple swap and hot swap
• Network Interface:
  • 2x GbE on-board ports (Broadcom BCM5720)
  • 1x GbE port dedicated for XCC management
• Ports:
  • Front: 1x USB 3.2 Gen 1 (5Gbps), 1x USB 2.0 port for local management using the XCC Mobile app
  • Rear: 2x USB 3.2 G2 (10Gb) ports, 2x RJ45 Gigabit Ethernet ports, 1x 1GbE dedicated XCC port for remote management, 1x Serial port, 1x VGA port
• Systems Management and Security:
  • Lenovo XClarity Controller
  • Embedded TPM 2.0
  • Optional front security bezel
• Power Supplies: Supports a single 450W fixed power supply or a redundant pair of hot-swap power supplies
• OS Support: Compatible with Microsoft Windows Server 2022, Red Hat, SUSE, and VMware ESXi.

The Ideal Choice for Growing Businesses

The Lenovo ThinkSystem SR250 V2 is more than just a server; it’s a strategic investment in the future of your business. Its combination of high performance, scalability, security, and energy efficiency makes it an ideal choice for businesses looking to optimize their IT infrastructure. Whether you need a server for IT infrastructure, web serving, virtualization, or edge workloads, the ThinkSystem SR250 V2 is designed to meet your needs.

Available now at 7stores.au, the Lenovo ThinkSystem SR250 V2 is the smart choice for businesses that require a reliable and scalable server solution to stay ahead in a competitive market. Equip your business with the technology it needs to thrive—choose the Lenovo ThinkSystem SR250 V2.
