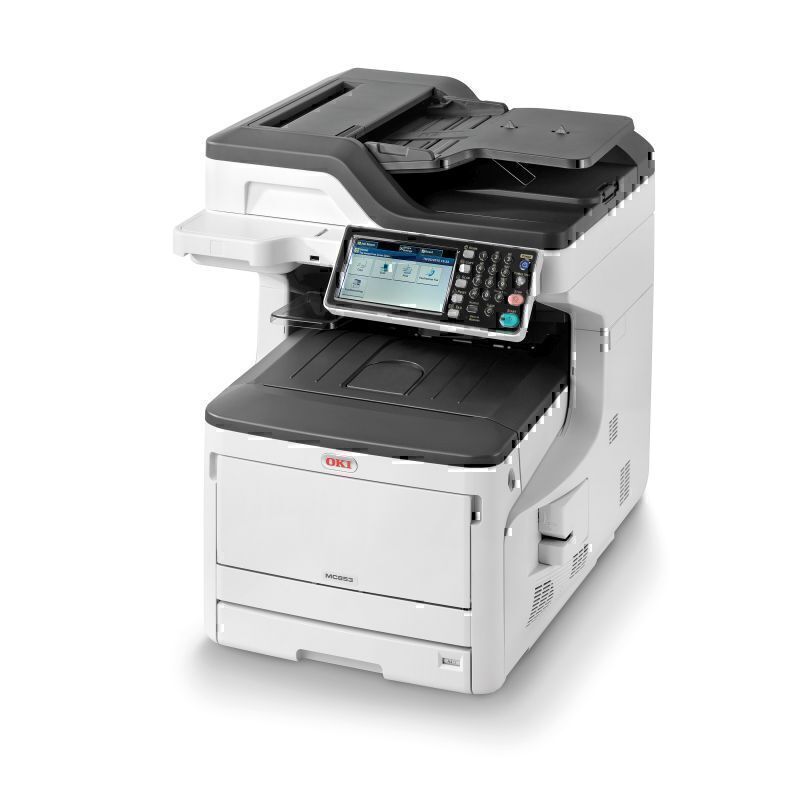

Oki MC853DN A3 Colour Laser MFP 23PPM Printer

A compact, powerful A3 colour multifunction printer offering excellent print quality and copy functionality, the MC853 is ideal for small workgroups. Easy to use with a customisable interface, it combines low total cost of ownership with the functionality of higher-priced devices.

Ideal for busy workgroups, the MC853 combines excellent print quality, scanning, fax and copy functionality with smart document management features. Compact and easy-to use, the versatile MFP contains a range of security and eco-features, lowering running costs, maximising productivity and providing fast, seamless workflow.

High-quality output - Exceptional colour with impressive print speeds

The high-performance MC853 delivers outstanding print quality and exceptional High Definition colour results in quick time, making it ideal for a wide range of in-house printing requirements.

High-resolution colour and mono printing with A4 print speeds of up to 23ppm colour/mono, 13ppm colour/mono A3
Duplex printing as standard
Paper capacity of up to 2,005 sheets
Fast scan speed of up to 50spm and 100 sheet RADF for multi-page, single and double-sided documents
Convenient built-in stapler as standard for easy post-production finishing

Advanced features - Simple, efficient printing, copying, scanning and flexible media handling

Combining four-in-one print, copy, scan and fax functions with easy-to-use LCD touch screen interface, flexible media handling and security features, the MC853 provides the high-performance functionality of more expensive devices.

Encrypted Secure Print function for protected printing
Auto-sensing multi-purpose tray for printing on a wide range of media sizes and weights, from A6 to 1.3m long banners and up to 256gsm
Customisable colour LCD touch screen with intuitive menu system, enhanced help functionality and Job Macro functions for frequent actions
Range of software solutions including SENDYS Explorer, ABBYY FineReader, smartPrintSuperVision and mobile printing solutions provide added functionality and control

Super-fast fax - Enhanced fax functionality with Super G3 speed

Adding to its advanced document management capability, the MC853 features enhanced fax functionality, enabling faxes to be managed, sent and received at super-fast speed.

Super G3 sends and receives faxes at high speed, with resolution up to 392dpi
Fax documents directly from or to a PC or forward faces to another fax machine or email address
Block junk faxes, store and view incoming faxes on touch screen display
Save time with 40 one-touch buttons and 1,000 speed dials

Integrated workflow - Seamless, easy document management, smart software

OKI’s smart Extendable Platform (sXP) combined with other smart, integrated functionality puts the MC853 at the heart of document workflows. Seamless integration with third-party solutions help meet current and future document management requirements.

Smart Extendable Platform (sXP) enables seamless integration with document workflows and third-party solutions
USB and network TWAIN scanning and save settings for repeated tasks
LDAP provides direct access to contact and email data from existing directory server
Scan directly to: USB, Network folder, email, FTP server, Local PC and Remote scan

Type	Floor / Desktop
Scanning Method	Color CIS
Printing Method	Digital 4 LED Full-color Electrophotographic Printing Method
Copy Density Adjustment	7 levels (Manual)
Input Capacity	Tray 1 : 300 sheets (Optional)Additional Tray : 535 sheets Multi-purpose tray : 100 sheets
Scanning Resolution	Up to 600 x 600 dpi
Writing Resolution	Up to 600 x 1200 dpi
Acceptable Original	Sheet, Book
Original Size	Flatbed: A3, A4, A5, A6, B4, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio; ADF: A3, A4, A5, A6, B4, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio
Copy Paper Size	A3, A4, A5, A6, B4, B5, B6, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio, 8K, 16K, Envelopes, Postcard, Return postcard
Copy Scaling	25 – 400 %
Maximum Copies	999 sheets
Copy Speed	A4 23 cpm color, 23 cpm mono
First Copy Out Time	Color: Approx. 14.5 seconds, Mono: Approx. 14.5 seconds
Warm-up Time	Approx. 32.0 seconds from power-on
Power Source	Single phase 220 - 240 VAC ±0%, 50/60 Hz ±2%
Power Consumption	Operating: Max. 1,400W / Ave. 850W Idle: 120W Power Save: 30.0W Deep Sleep: 3.0W Auto-Off: 0.15W
Memory (Std./Max.)	1,280MB/1,280MB
Noise Level	Operating :Approx. 54 dBA Idle: < 37 dBA
Operating Environment	Operating: 10 - 32 °C, 20 - 80 %RH No condensation
Dimensions(WxDxH)	563 x 600 x 700 mm
Weight(includes supplies)	Approx. 64.0 kg
Duty Cycle	Recommended: 8,000 pages/month Maximum: 60,000 pages/month
In the Box	Others, Starter toner cartridge x 4, Image Drum x 4, Power cable, DVD-ROM, Ferrite Core

Print Speed	A4(Landscape) 23 ppm color, 23 ppm mono A3 13 ppm color, 13 ppm mono
First Print Out Time	Color: Approx. 14.0 seconds Mono: Approx. 14.0 seconds
Printing Resolution	600 x 600 dpi 600 x 1200 dpi (4 levels) 600 x 600 dpi Physical dot pitch: 600 dpi
Interface	1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), (Optional) Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed) Host
Protocol	TCP/IP
Printer Language	PostScript 3 emulation, PDF v1.7 emulation, PCL 5c emulation, PCL 6 (XL) emulation, XPS emulation, IBM ProPrinter emulation, Epson FX Emulation
Supported OS (Click here for latest OS)	Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Linux
Memory (Std./Max.)	1,280MB/1,280MB
Hard Disk Drive	250 GB
Font	PostScript emulation 80 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts
Paper Size	A3, A4, A5, A6, B4, B5, B6, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio, 8K, 16K, Envelopes, Postcard, Return postcard, Custom Size: Width 64-297 mm x Length 90-1321 mm
Paper Weight	Tray 1 : 64 - 220 gsm (Optional)Additional Tray : 64 - 176 gsm Multi-purpose tray : 64 - 256 gsm
Input Capacity	Tray 1 : 300 sheets (Optional)Additional Tray : 535 sheets Multi-purpose tray : 100 sheets
Output Capacity	Upper tray : Max. 100 sheets Face Down : Max. 250 sheets Face Up : Max. 100 sheets

Scan

Scan Resolution	Max. 600 x 600 dpi
Scan Speed	Max. 50 ipm Color, 50 ipm mono
Interfaces	1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), (Optional)Wireless LAN (IEEE802.11a/b/g/n), USB 2.0 (High Speed) Host
Supported Protocol	SMB, FTP(S), TWAIN, WIA2.0
Output Format	Secure PDF, High compression PDF, JPEG, TIFF, XPS
Driver	TWAIN, WIA2.0(Windows Vista or later), ICA(Mac OS X 10.6 or later)

Fax

Applicable Line	PSTN, PBX
Interface	RJ-11 x 2 (Line, Tel)
Transmission Resolution	Normal: 8 dots/mm x 3.85 lines/mm Fine/Photo: 8 dots/mm x 7.7 lines/mm Extra Fine: 8 dots/mm x 15.4 lines/mm
Communication Speed	Super G3: 33.6kbps
Encoding Method	MH, MR, MMR, JBIG
Communication Mode	ITU-T G3, Super G3
Transmission Original Size	Max. A3, Length 420 mm
Paper Size	Max. A3, Min. A5
Transmission Time	Approx. 2.0 sec. / page
Memory	Max. 400 pages (256MB)
Other Function	Speed Dial(1000 locations), Broadcast(32 group, 100 locations/group), Duplex scanning, F-Code Confidential FAX, Delayed Tx, LDAP, PC Fax, PDF Store/Distribution

Document feeder

Type	Reverse Automatic Document Feeder (RADF)
Original Size	A3, A4, A5, A6, B4, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive, Tabloid (11" x 17"), Statement, Folio, Custom Size: Width 0-297 mm x Length 0-431 mm
Original Weight	60 - 120 gsm
Loading Capacity	Max. 100 sheets
Original Exchange Speed	Simplex 50 ppm color, 50 ppm mono Duplex 17 ppm color, 17 ppm mono
