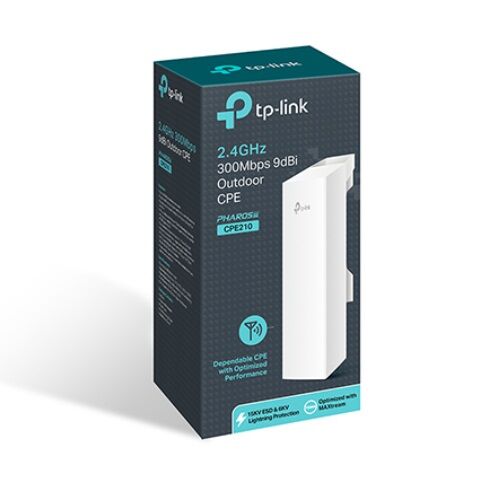

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point Built-in 9dBi 2x2 dual-polarized directional MIMO antenna Adjustable transmission power from 0 to 27dBm 500mw System-level optimizations for more than 5km long range wireless transmission TP-LINK Pharos MAXtream TDMA Time-Division-Multiple-Access technology improves product performance in throughput capacity and latency performance ideal for PTMP applications Centralized Management System – Pharos Control AP Client Bridge Repeater AP Router AP Client Router WISP operation modes Passive PoE Adapter supports up to 60 meter 200 feet Power over Ethernet deployment and allows the device to be reset remotely HARDWARE FEATURES Processor Qualcomm Atheros 560MHz CPU MIPS 74Kc Memory 64MB DDR2 RAM 8MB Flash Interface 1 10 100Mbps Shielded Ethernet Port LAN0 Passive PoE in 1 10 100Mbps Shielded Ethernet Port LAN1 Passive PoE Passthrough 1 Grounding Terminal 1 Reset Button Power Supply Passive Power over Ethernet via LAN0 +4 5pins; -7 8pins Voltage range: 16-27VDC Power Consumption 10.5 Watts Max Note: When deployed using Passive PoE the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Dimensions W x D x H 224 x 79 x 60 mm Antenna Type Built-in 9dBi 2x2 Dual-polarized Directional Antenna Beam Width: 65° H-Plane 35° E-Plane Note: For more details please refer to datasheet Protection 15KV ESD Protection 6KV Lightning Protection Enclosure Outdoor ASA stabilized plastic material IPX5 waterproof Certification WIRELESS FEATURES Wireless Standards IEEE 802.11b g n with Pharos MAXtream disabled Proprietary Protocol TDMA Mode with Pharos MAXtream enabled Wireless Speeds Up to 300Mbps 40MHz Dynamic Up to 144.4Mbps 20MHz Dynamic Up to 72.2Mbps 10MHz Dynamic Up to 36.1Mbps 5MHz Dynamic Frequency 2.4~2.483GHz Note: Available operating frequency may vary depending on the limitation
SKU CPE210
Barcode # 6935364071677
Brand TP-Link
Shipping Weight 3.0000kg
