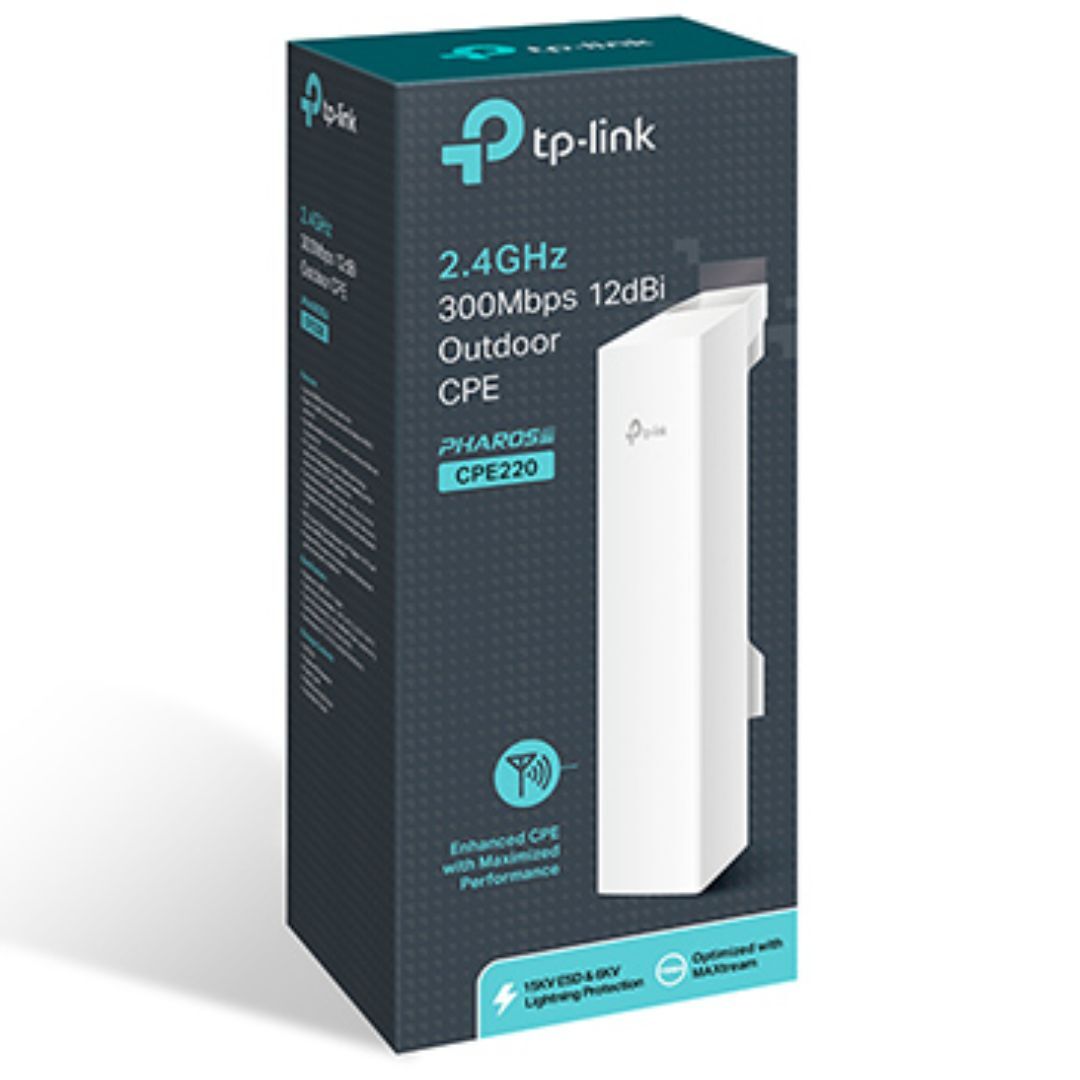

TP-Link CPE220 2.4GHz 300Mbps 12dBi High Power Outdoor CPE Access Point 802.11b g n 2x2 dual-polarized directional MIMO antenna Passive PoE up to13km Built-in 12dBi 2x2 dual-polarized directional MIMO antenna Adjustable transmission power from 0 to 30dBm 1000mw System-level optimizations for more than 13km long range wireless transmission TP-LINK Pharos MAXtream TDMA Time-Division-Multiple-Access technology improves product performance in throughput capacity and latency performance ideal for PTMP applications Centralized Management System – Pharos Control AP Client Bridge Repeater AP Router AP Client Router WISP operation modes Passive PoE Adapter supports up to 60 meter 200 feet Power over Ethernet deployment and allows the device to be reset remotely HARDWARE FEATURES Processor Qualcomm Atheros 560MHz CPU MIPS 74Kc Memory 64MB DDR2 RAM 8MB Flash Interface 1 10 100Mbps Shielded Ethernet Port LAN0 Passive PoE in 1 10 100Mbps Shielded Ethernet Port LAN1 Passive PoE Passthrough 1 Grounding Terminal 1 Reset Button Power Supply Passive Power over Ethernet via LAN0 +4 5pins; -7 8pins Voltage range: 16-27VDC Power Consumption 10.8 Watts Max Note: When deployed using Passive PoE the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Dimensions W x D x H 11×3.1×2.1 inch 276×79×60 mm Antenna Type Built-in 12dBi 2x2 Dual-polarized Directional Antenna Beam Width: 60° H-Plane 30° E-Plane Note: For more details please refer to datasheet Protection 15KV ESD Protection 6KV Lightning Protection Enclosure Outdoor ASA stabilized plastic material IPX5 waterproof Certification WIRELESS FEATURES Wireless Standards IEEE 802.11b g n with Pharos MAXtream disabled Proprietary Protocol TDMA Mode with Pharos MAXtream enabled Wireless Speeds Up to 300Mbps 40MHz Dynamic Up to 144.4Mbps 20MHz Dynamic Up to 72.2Mbps 10MHz Dynamic Up to 36.1Mbps
SKU CPE220
Barcode # 6935364091583
Brand TP-Link
Shipping Weight 3.0000kg
