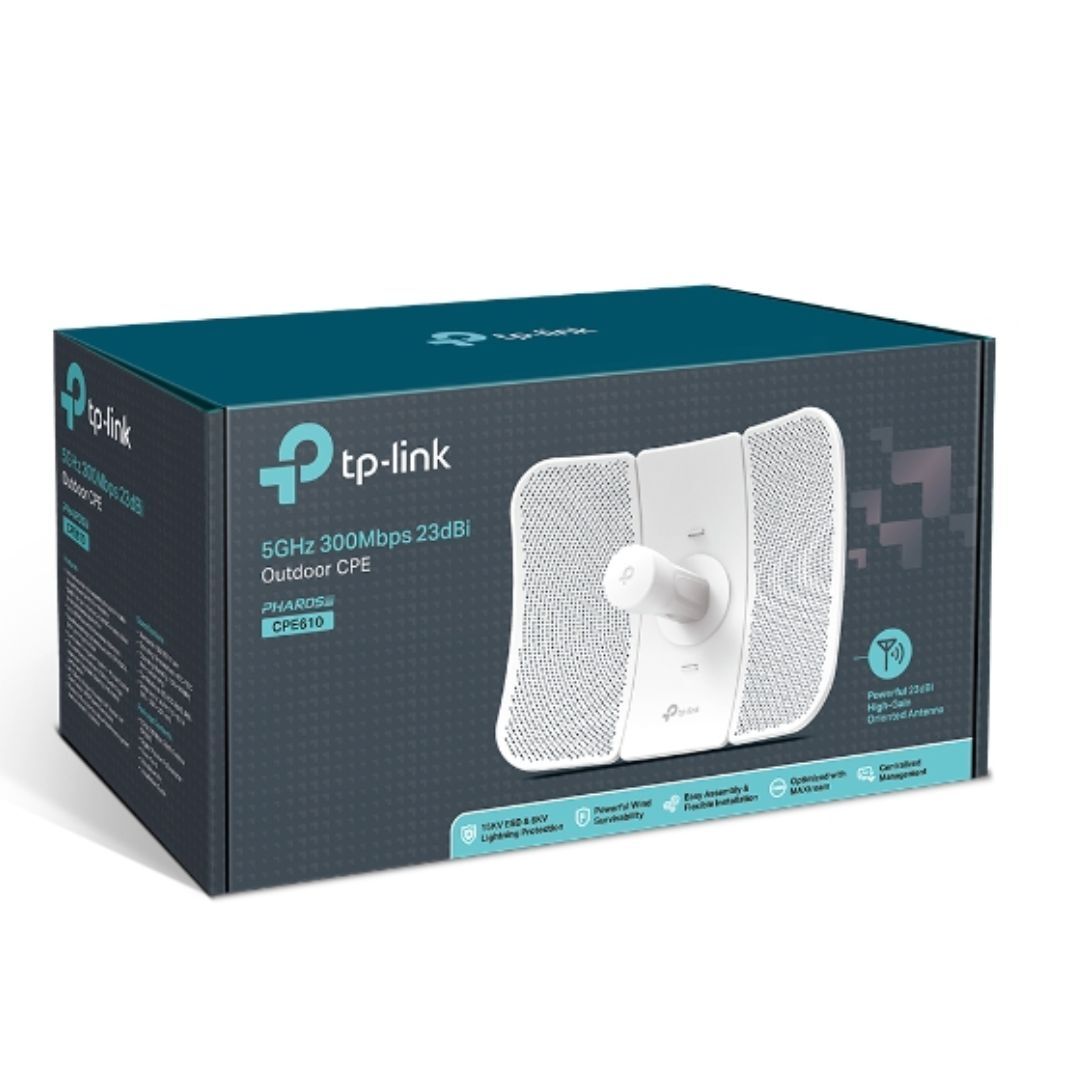

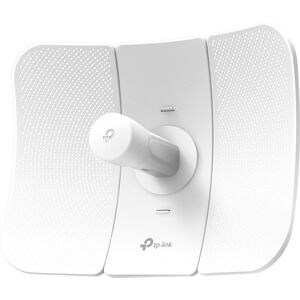

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE MIMO antenna Access Point Client Bridge Repeater AP Router AP Client Router Passive PoE Weatherproof Up to 300Mbps on 5GHz wireless data rates 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector ideal for long-distance application Excellent beam directivity improved latency and noise cancellation Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability TP-Link Pharos MAXtream TDMA technology improves throughput capacity and latency performance Pharos Control gives administrators a free centralized management system AP Client Bridge Repeater AP Router AP Client Router WISP operation modes Passive PoE supports to allow flexible deployment and convenient installation HARDWARE FEATURES Processor Qualcomm 560MHz CPU MIPS 74Kc Memory 64MB DDR2 RAM 8MB Flash Interface 1 1 10 100Mbps Shielded Ethernet Port LAN POE 1 Reset Button Power Supply Passive Power over Ethernet via LAN +4 5pins; -7 8pins Voltage range: 16-27VDC Dimensions 360 x 280 x 207 mm 14.4 x 11.0 x 8.1 in. No mount Antenna Gain 23dBi Antenna Beamwidth 9° Azimuth 7° Elevation Protection 15KV ESD Protection 6KV Lightning Protection Enclosure Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design WIRELESS FEATURES Wireless Standards IEEE 802.11a n Proprietary Protocol TDMA Mode with Pharos MAXtream enabled Wireless Speeds Up to 300Mbps 40MHz Dynamic Up to 144.4Mbps 20MHz Dynamic Up to 72.2Mbps 10MHz Dynamic Up to 36.1Mbps 5MHz Dynamic Frequency 5.15~5.85GHz Transmit Power Max. 29dBm 790mW Adjustable power by 1dBm SOFTWARE FEATURES Operating Modes AP Client Bridge Repeater AP Router AP Client Router WISP Client
SKU CPE610
Barcode # 6935364081027
Brand TP-Link
Shipping Weight 3.0000kg
