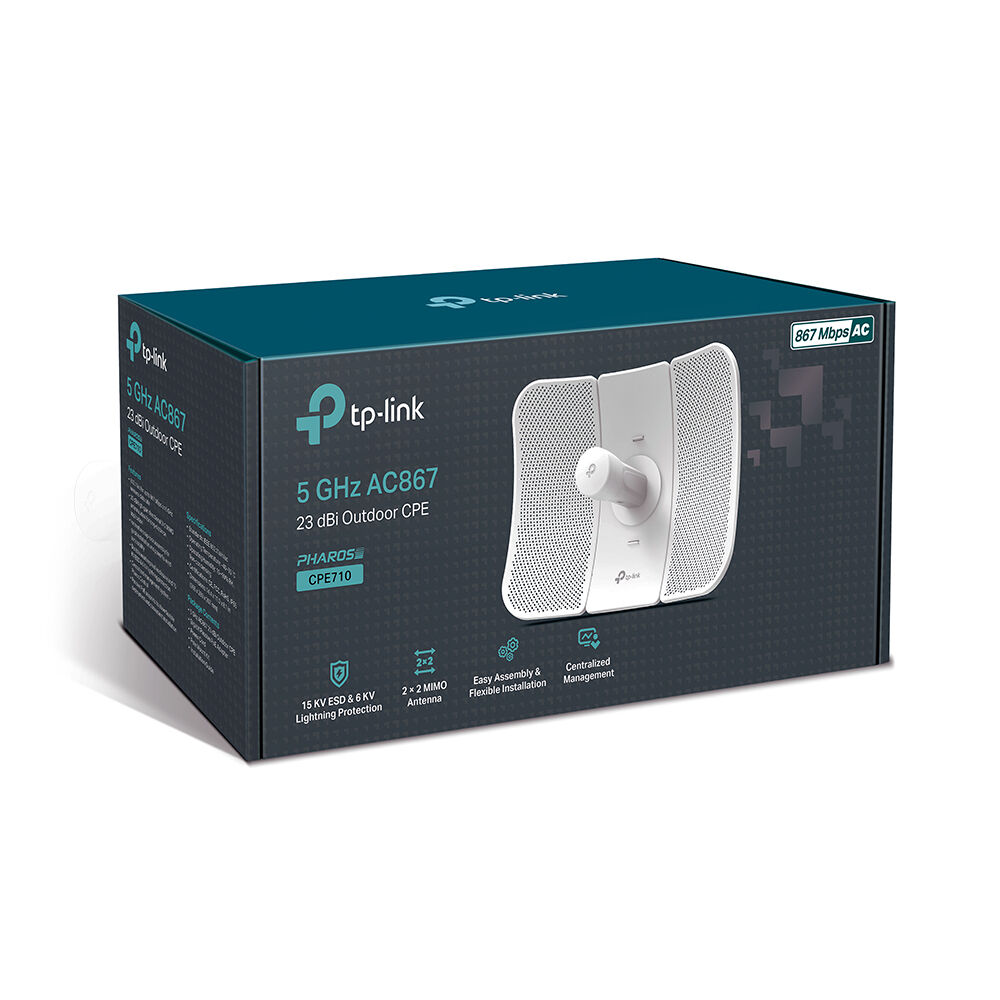

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE • 802.11ac for up to 867Mbps on 5GHz wireless data rate • 23dBi high-gain directional 2×2 MIMO ideal for long-distance application • Excellent beam directivity improved latency and noise cancellation • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds • Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability • Pharos Control gives administrators a free centralized management system • Passive PoE supports to allow flexible deployment and convenient installation HARDWARE FEATURES Processor Qualcomm 750MHz CPU MIPS 74Kc Memory 128 MB DDR2 RAM 16 MB Flash Interface 1 10 100 1000 Mbps Shielded Ethernet Port LAN POE 1 Reset Button Power Supply Passive Power over Ethernet via LAN +4 5pins; -7 8pins Voltage range: 16-27V DC Dimensions W x D x H 366 x 280 x 207 mm 14.4 x 11.0 x 8.1 in. Antenna Gain 23 dBi Antenna Beamwidth 9° Azimuth 7° Elevation Protection 15 KV ESD Protection 6 KV Lightning Protection Enclosure Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design WIRELESS FEATURES Wireless Standards IEEE 802.11a n ac Wireless Speeds Up to 867 Mbps 80 MHz Dynamic Up to 400 Mbps 40 MHz Dynamic Up to 173.4 Mbps 20 MHz Dynamic Frequency 5.15~5.85 GHz Transmit Power Max. 27 dBm Adjustable power by 1dBm SOFTWARE FEATURES Network Configuration WAN: Static Dynamic PPPoE LAN: Static Dynamic DHCP Forwarding: ALG UPnP Virtual Server Port Trigger Security: SPI Firewall Ping Forbidden DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding POE ADAPTER FEATURES Dimensions W x D x H 85.8×43.9×29.7 mm
SKU CPE710
Barcode # 6935364089702
Brand TP-Link
Shipping Weight 3.0000kg
