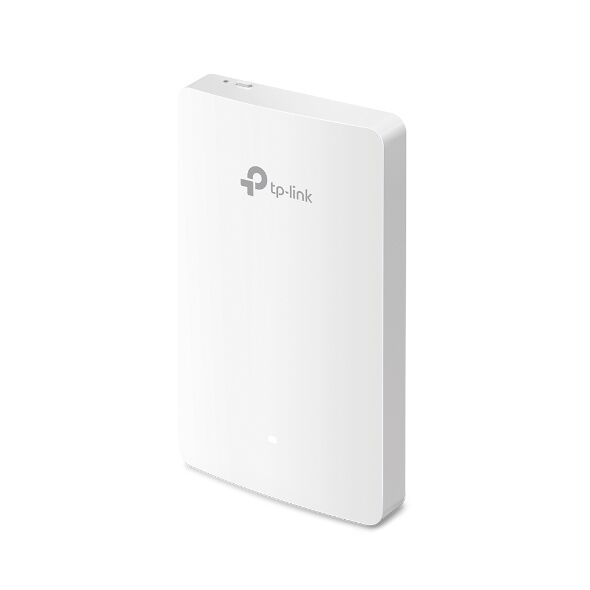

TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point • Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1 167 Mbps Wi-Fi speeds with MU-MIMO.† • Four Gigabit Ports: 4 Gigabit Ethernet ports 1× uplink + 3× downlink with one downlink port supporting PoE pass-through to provide power for a wired device. • Integrated into Omada SDN: Zero-Touch Provisioning ZTP ‡ Centralised Cloud Management and Intelligent Monitoring. • Centralised Management: Cloud access and Omada app for ultra convenience and easy management. • Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms hospitals offices dormitories and any other environments. • Easy Installation and PoE Support: Easy-mount construction compatible with 86 mm & EU & US standard junction box and 802.3af at PoE support. • Secure Guest Network: Along with multiple authentication options SMS Facebook Wi-Fi Voucher etc. and abundant wireless security technologies. • Advanced Wireless Tech: Optimize network performance with MU-MIMO Band Steering and Beamforming technologies. HARDWARE FEATURES Interface Uplink: 10 100 1000 Mbps Ethernet Port*1 Downlink: 10 100 1000 Mbps Ethernet Port*3 One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W. Physical Security Lock Yes Button Reset Power Supply 802.3af 802.3at PoE Power Consumption 9.8 watts 24.4 watts PoE Out Included Dimensions 143 × 86 × 20mm 5.6 × 3.4 × 0.8 in Antenna 2 Dual-Band Antennas 2.4GHz: 2*4dBi 5GHz: 2*4dBi Mounting Wall Plate Mounting WIRELESS FEATURES Wireless Standards IEEE 802.11a b g n ac Frequency 2.4GHz and 5GHz Signal Rate 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps Wireless Functions 16 SSIDs(Up to 8 SSIDs on each band) Enable Disable Wireless Radio Automatic Channel Assignment Transmit Power Control Adjust Transmit Power on dBm QoS WMM MU-MIMO Band Steering
SKU EAP235-Wall
Barcode # 6935364088972
Brand TP-Link
Shipping Weight 3.0000kg
