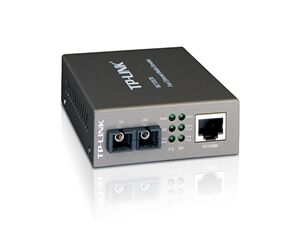

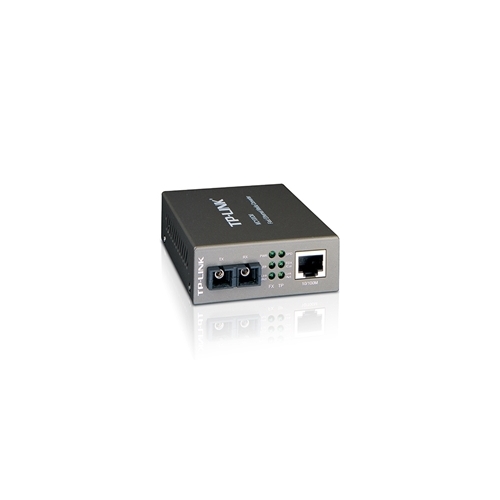

TP-Link MC100CM Media Converter 10 100Mbps RJ45 to 100M multi-mode SC fiber up to 2km chassis mountable Complies with 802.3u 10 100Base-TX 100Base-FX standards Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Provides switch configuration of Half-Duplex Full-Duplex transfer mode for FX port Extends fiber distance up to 2km What This Product Does The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10 100Base-TX and 100Base-FX standards the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave LX laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device no chassis required or with TP-LINK´s 19´´system chassis Auto MDI MDI-X for TX port Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers. MEDIA CONVERTER & MODULE Standards and Protocols IEEE 802.3 IEEE 802.3u IEEE 802.3x Basic Function Half Full-Duplex transfer mode for FX port Full Duplex Flow Control IEEE 802.3x Half Duplex Flow Control Backpressure Extends fiber distance up to 2km Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Ports 1 100M SC UPC port 1 100M RJ45 port Auto MDI MDIX Wave Length 1310nm Network Media 10BASE-T UTP category 3 4 5 cable maximum 100m EIA TIA-568 100Ω STP maximum 100m Network Media 100BASE-T UTP category 5 5e cable maximum 100m EIA TIA-568 100Ω STP maximum 100m Network Media 100BASE-FX Multi-mode Fiber LED Indicators PWR FDX Col Link Act SPD Dimensions W*D*H 3.7*2.9*1.1 in. 94.5*73.0*27.0 mm Power Supply External power supply
SKU MC100CM
Barcode # 6935364030391
Brand TP-Link
Shipping Weight 3.0000kg
