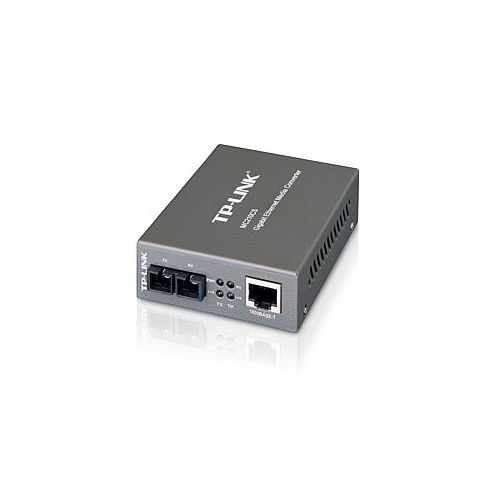

TP-Link MC210CS Gigabit Single-Mode Media Converter Extends fiber distance up to 15km Works at 1000Mbps in Full-Duplex mode for both TX port and FX port Supports auto MDI MDIX for TX port Provides switch configuration of Force Auto transfer mode for FX port. Extends fiber distance up to 15km Easy-to-view LED indicators provide status to monitor network activity easily External power supply What This Product Does The MC210CS is a media converter designed to convert 1000BASE-LX LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX LH standards the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave LX laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device no chassis required or with TP-LINK´s 19´´system chassis Auto MDI MDI-X for TX port and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers. MEDIA CONVERTER & MODULE Standards and Protocols IEEE 802.3ab IEEE 802.3z IEEE 802.3x Basic Function Full Duplex Flow Control IEEE 802.3x Extends fiber distance up to 15km Ports 1 1000M SC UPC port 1 1000M RJ45 port Auto MDI MDIX Wave Length 1310nm Network Media 1000BASE-FX Single-mode Fiber Network Media 1000BASE-T UTP category 5 5e cable maximum 100m EIA TIA-568 100Ω STP maximum 100m LED Indicators PWR LINK RX Dimensions W*D*H 3.7*2.9*1.1 in. 94.5*73.0*27.0 mm Power Supply External Power Adapter Max Power Consumption 5.5W Safety & Emission FCC CE RoHS Environment Operating Temperature: 0℃~40℃ 32℉~104℉ Storage Temperature: -40℃~70℃ -40℉~158℉ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
SKU MC210CS
Barcode # 6935364030445
Brand TP-Link
Shipping Weight 3.0000kg
