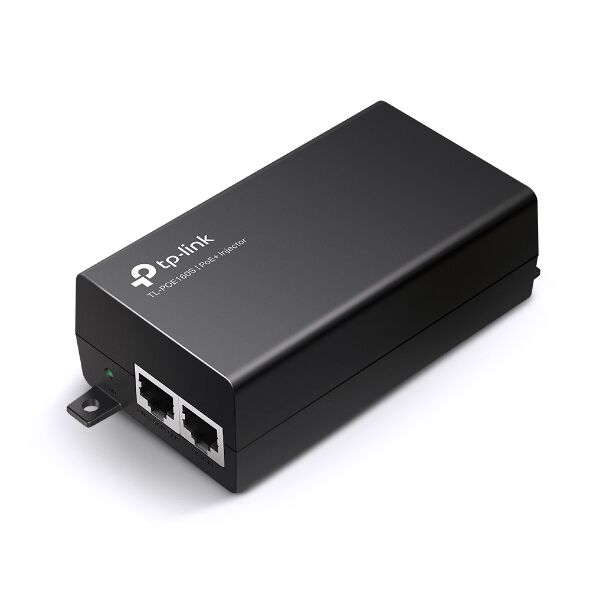

TP-Link TL-POE160S PoE+ Injector • 2 Gigabit ports ensure faster transmission • Complies with IEEE802.3af at standards supplies up to 30 W • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable • Automatically determines and supplies the exact power to meet the device's need • Wall-mounting and desktop design accommodates most installation scenarios • Plug & Play installation requires no configuration • Integrated power supply NETWORK Standards and Protocols IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3af IEEE802.3at GENERAL Certification FCC CE RoHS Environment Operating Temperature: 0°C to 40°C 32°F to 104°F Storage Temperature: -40°C to 70°C -40°F to 158°F Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing HARDWARE FEATURES Network Media 10BASE-T: UTP category 3 4 5 cable maximum 100 m EIA TIA-568 100Ω STP maximum 100 m 100BASE-TX: UTP category 5 5e cable maximum 100 m EIA TIA-568 100Ω STP maximum 100 m 1000BASE-T: UTP category 5 5e 6 cable maximum 100 m Ports 1 10 100 1000Mbps RJ45 data-in port 1 10 100 1000Mbps RJ45 power+data-out port 1 AC socket Power Consumption Input: 100-240 V 50 60 Hz Output: Auto-determine the necessary power requirements max. 30 W Basic Function Auto-Sensing Algorithm enables providing power with 802.3af at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play LED Indicator ON: Supplying power normally OFF: No power supply Dimensions W x D x H 4.9*2.3*1.4 in 125*59.4*36.8 mm
SKU TL-POE160S
Barcode # 6935364073084
Brand TP-Link
Shipping Weight 3.0000kg
