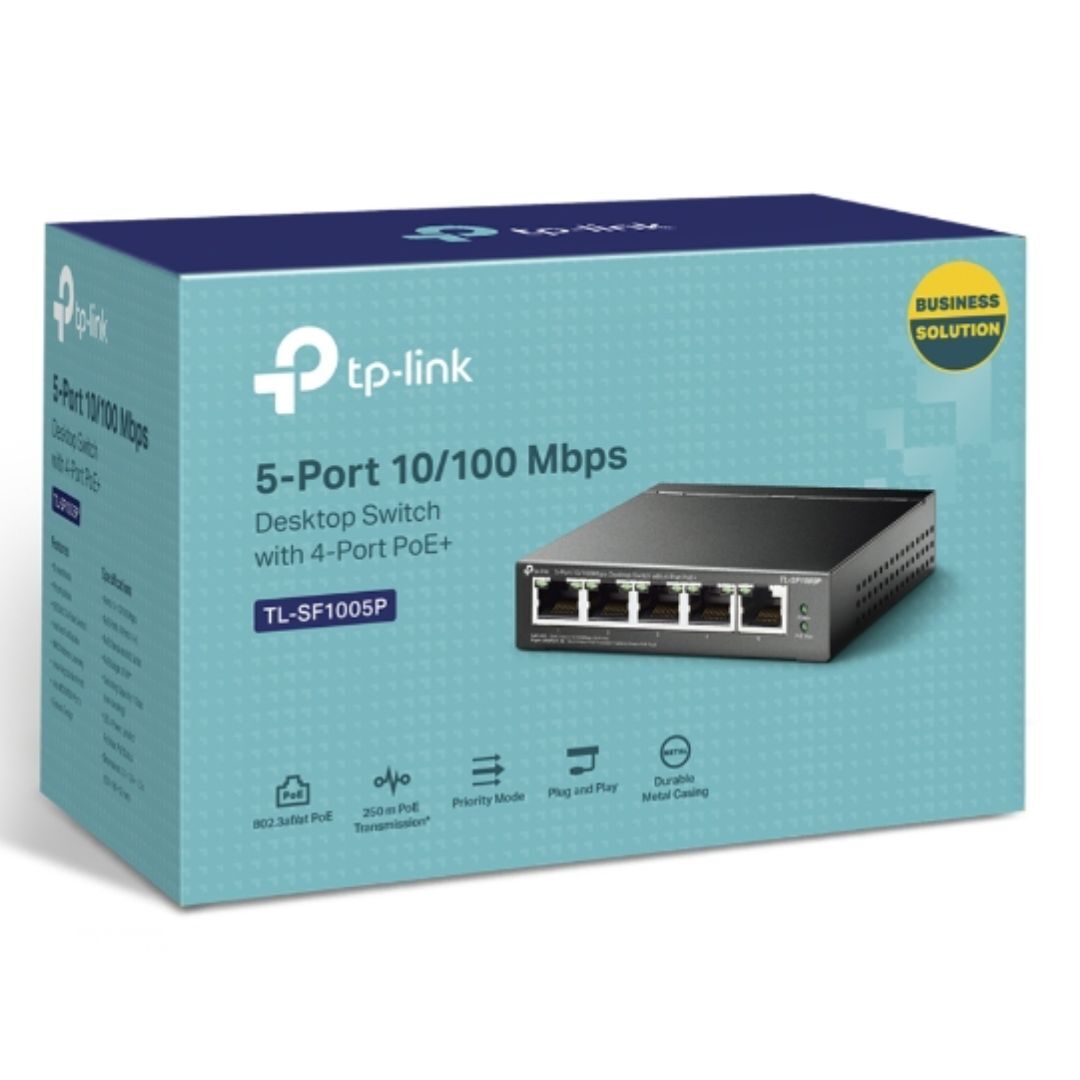

TP-Link TL-SF1005P 5-Port 10 100Mbps Desktop Switch with 4-Port PoE 58W IEEE 802.3af compliant 1Gbps Switching 5 10 100Mbps RJ45 ports With four PoE ports transfers data and power on one single cable Working with IEEE 802.3af compliant PDs expands home and office network Supports PoE Power up to 15.4W for each PoE port Supports PoE Power up to 58W for all PoE ports Requires no configuration and installation HARDWARE FEATURES Interface 5 10 100Mbps RJ45 Ports AUTO Negotiation AUTO MDI MDIX Network Media 10BASE-T: UTP category 3 4 5 cable maximum 100m EIA TIA-568 100Ω STP maximum 100m 100BASE-TX: UTP category 5 5e cable maximum 100m EIA TIA-568 100Ω STP maximum 100m Fan Quantity Fanless External Power Supply External Power Adapter Output: 48VDC 1.25A PoE Ports RJ45 Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 58W Mac Address Table 2K Switching Capacity 1Gbps Dimensions W x D x H 3.9 x 3.9 x 1.0 in. 99.8 x 98 x 25 mm Transmission Distance Store-And-Forward Max Power Consumption 63.51W max. with 58w PD connected 1.70W max. no PD connected What This Product Does TL-SF1005P is a 5 10 100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE Power over Ethernet ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices PDs . In this situation the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets where you wish to fix devices such as APs IP Cameras or IP Phones etc. Power over Ethernet 4 of the 5 Auto-Negotiation RJ45 ports Port 1 to Port 4 of the switch support Power over Ethernet PoE function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices PDs . Overload Arrangement
SKU TL-SF1005P
Barcode # 6935364083199
Brand TP-Link
Shipping Weight 3.0000kg
