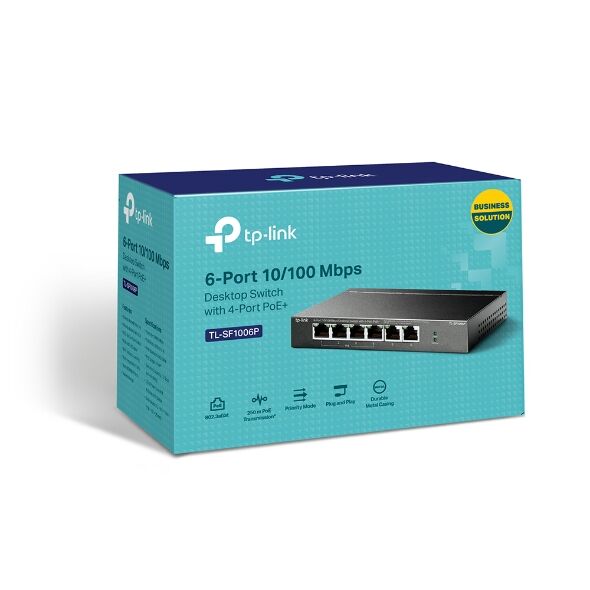

TP-Link TL-SF1006P 6-Port 10 100Mbps Desktop Switch with 4-Port PoE+ • 6× 10 100 Mbps RJ45 ports • 4× PoE+ ports transfer data and power on individual cables • Works with IEEE 802.3af at compliant PDs • Up to 250m data and power transmitting range under Extend Mode** • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application • Supports PoE Power up to 30 W for each PoE port • Supports PoE Power up to 67 W for all PoE ports* • Plug and play with no configuration required HARDWARE FEATURES Interface • 6× 10 100 Mbps RJ45 Ports ports 1–4 support 802.3af at PoE+ • AUTO Negotiation • AUTO MDI MDIX Network Media • 10BASE-T: UTP category 3 4 5 cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m • 100BASE-TX: UTP category 5 5e cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter Output: 53.5 V DC 1.31 A Packet Forwarding Rate 0.8928 Mpps PoE Ports RJ45 • Standard: 802.3 af at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W Mac Address Table 2K Jumbo Frame 2 KB Switching Capacity 1.2 Gbps Dimensions W x D x H 6.2 x 4.0 x 1.0 in 158 x 101 x 25 mm Max Power Consumption • 1.9 W 220 V 50 Hz no PD connected • 74 W 220 V 50 Hz with 67 W PD connected Max Heat Dissipation • 6.48 BTU h no PD connected • 252.34 BTU h with 67 W PD connected SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions • Compatible With IEEE 802.3af at Compliant PDs • Extend Mode Button Ports 1–4 • Priority Mode Button Ports 1–2 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode OTHERS Certification FCC CE RoHS Package Contents • TL-SF1006P • Power Adapter • Installation Guide Environment • Operating Temperature: 0–40 ℃ 32–104 ℉ • Storage Temperature: -40–70 ℃ -40–158 ℉
SKU TL-SF1006P
Barcode # 6935364030933
Brand TP-Link
Shipping Weight 3.0000kg
