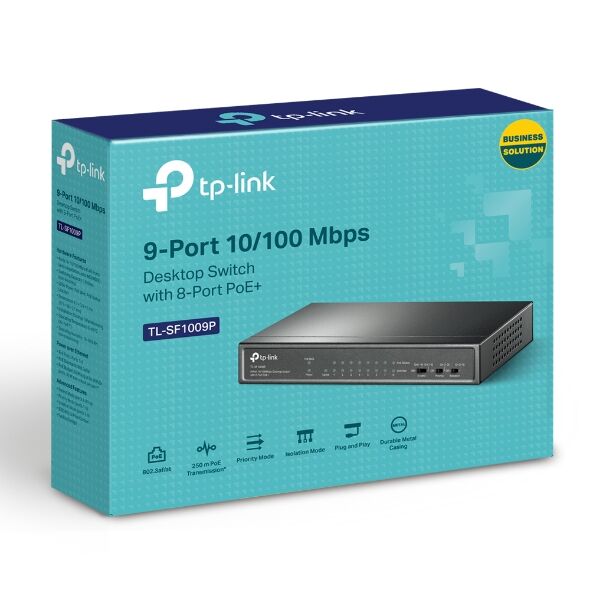

TP-Link TL-SF1009P 9-Port 10 100Mbps Desktop Switch with 8-Port PoE+ • 9× 10 100 Mbps RJ45 ports • 8× PoE+ ports transfer data and power on individual cables • Works with IEEE 802.3af at compliant PDs • Supports PoE Power up to 30 W for each PoE port • Supports PoE Power up to 65 W for 8 PoE ports* • Up to 250 m data and power transmitting range under Extend Mode** • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application • Isolation Mode allows one-click client traffic separation for higher security and performance • Plug and play with no configuration required HARDWARE FEATURES Interface • 9× 10 100 Mbps RJ45 Ports 8× 10 100 Mbps 802.3af at PoE+ ports • AUTO Negotiation • AUTO MDI MDIX Network Media • 10BASE-T: UTP category 3 4 5 cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m • 100BASE-TX: UTP category 5 5e cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter Output: 53.5VDC 1.31A Packet Forwarding Rate 1.3392 Mpps PoE Ports RJ45 • Standard: 802.3 af at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W Mac Address Table 2K Jumbo Frame 2 KB Switching Capacity 1.8 Gbps Dimensions W x D x H 6.7 × 3.9 × 1.1 in 171 × 98 × 27 mm Max Power Consumption • 3.6 220 50 Hz. no PD connected • 77.08 220 50 Hz. with 65 W PD connected Max Heat Dissipation • 12.28 BTU h no PD connected • 262.84 BTU h with 65 W PD connected SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions • Compatible With IEEE 802.3af at Compliant PDs • Extend Mode Button Ports 1–4 and Ports 1–8 Up to 250 m PoE power supply and data transmission • Priority Mode Button Ports 1–2 • Isolation Mode Button Ports 1–8 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
SKU TL-SF1009P
Barcode # 6935364052966
Brand TP-Link
Shipping Weight 3.0000kg
