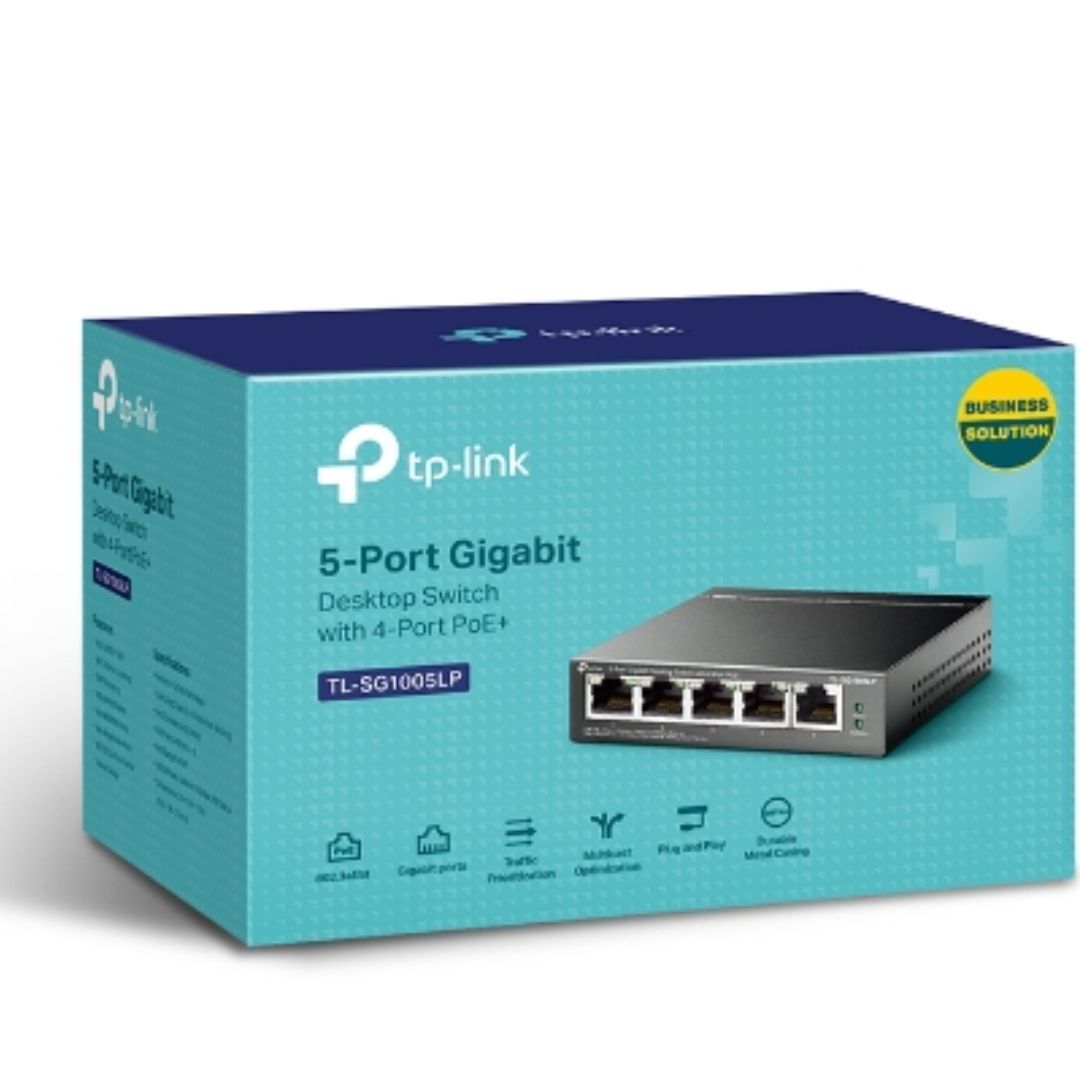

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+ • 5× 10 100 1000 Mbps RJ45 ports • With four PoE+ ports transfers data and power on one single cable • Works with IEEE 802.3af at compliant PDs • 802.1p DSCP QoS enable smooth latency-sensitive traffic • Supports PoE Power up to 30 W for each PoE port • Supports PoE Power up to 40 W for all PoE ports* • Plug and play no configuration and installation required HARDWARE FEATURES Interface • 5× 10 100 1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI MDIX Network Media • 10BASE-T: UTP category 3 4 5 cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m • 100BASE-TX: UTP category 5 5e cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m • 1000BASE-T: UTP category 5 5e 6 or above cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m Fan Quantity Fanless External Power Supply External Power Adapter Output: 53.5 VDC 0.81 A Packet Forwarding Rate 7.44 Mpps PoE Ports RJ45 • Standard: 802.3 af at compliant • PoE Ports: Ports 1–4 • Power Supply: 40 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 10 Gbps Dimensions W x D x H 3.9×3.9×1.0 in 99.8×98×25 mm Max Power Consumption • 4.12 W 220 50 Hz. no PD connected • 47.5 W 220 50 Hz. with 40 W PD connected Max Heat Dissipation • 14.05 BTU h no PD connected • 161.98 BTU h with 40 W PD connected SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3af at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p DSCP QoS • IGMP Snooping Transfer Method Store-And-Forward OTHERS Certification FCC CE RoHS Package Contents • TL-SG1005LP • Power Adapter • Installation Guide Environment • Operating Temperature: 0–40 ℃ 32–104 ℉ ; • Storage Temperature: -40–70 ℃ -40–158 ℉ • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
SKU TL-SG1005LP
Barcode # 6935364052720
Brand TP-Link
Shipping Weight 3.0000kg
