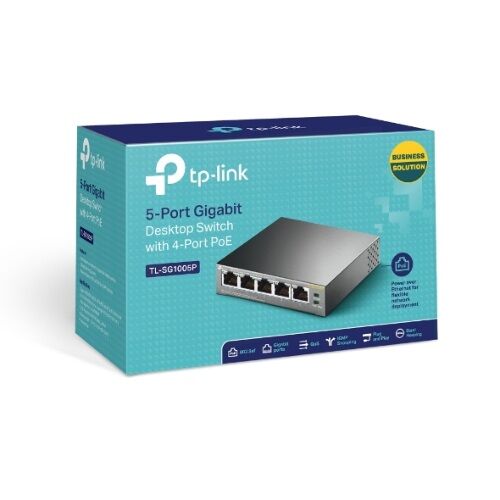

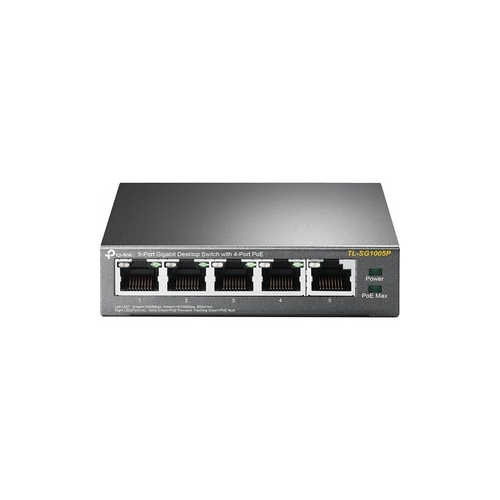

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W 5 10 100 1000Mbps RJ45 ports With four PoE ports transfers data and power on one single cable Working with IEEE 802.3af compliant PDs expands home and office network 802.1p DSCP QoS enable smooth latency-sensitive traffic Supports PoE Power up to 15.4W for each PoE port Supports PoE Power up to 56W for all PoE ports Requires no configuration and installation HARDWARE FEATURES Interface • 5× 10 100 1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI MDIX Network Media • 10BASE-T: UTP category 3 4 5 cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m • 100BASE-TX: UTP category 5 5e cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m • 1000BASE-T: UTP category 5 5e 6 or above cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m Fan Quantity Fanless External Power Supply External Power Adapter Output: 53.5 VDC 1.31 A Packet Forwarding Rate 7.44 Mpps PoE Ports RJ45 • Standard: 802.3 af at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 10 Gbps Dimensions W x D x H 3.9×3.9×1.0 in 99.8×98×25 mm Max Power Consumption • 4.29 W 220 50 Hz. no PD connected • 74.24 W 220 50 Hz. with 65 W PD connected Max Heat Dissipation • 14.63 BTU h no PD connected • 253.16 BTU h with 65 W PD connected SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3af at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p DSCP QoS • IGMP Snooping
SKU TL-SG1005P
Barcode # 6935364083212
Brand TP-Link
Shipping Weight 3.0000kg
