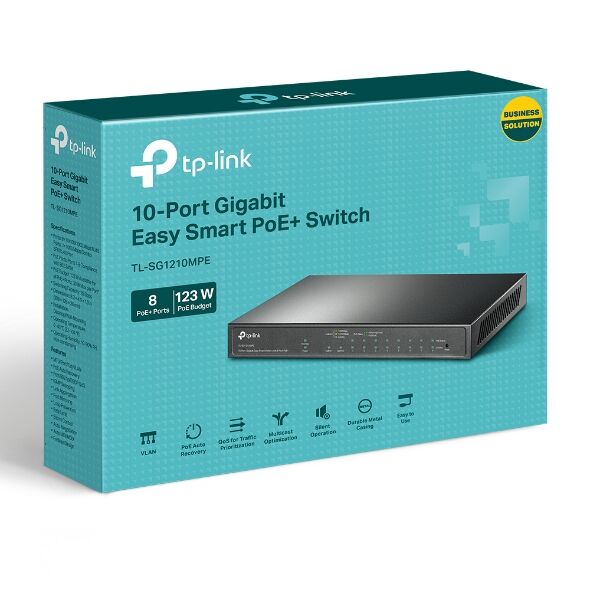

TP-Link TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+ • 9× gigabit RJ45 ports and 1× combo gigabit SFP RJ45 port • Equipped with eight 802.3af at PoE+ ports with up to 30 W for each port the switch can transfer data and power via one single cable • Supports PoE power up to 123 W for all PoE ports* • Provides network monitoring traffic prioritisation VLAN features and PoE Auto Recovery • Simple network set-up on top of plug-and-play connectivity • Web-based user interface and Easy Smart Configuration Utility simplify configuration • Fanless design lowers energy consumption and eliminates operating noise HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3x IEEE 802.1q IEEE 802.1p IEEE 802.3at IEEE 802.3z Interface 9× 10 100 1000 Mbps RJ45 Ports 1× 1000 Mbps Combo SFP RJ45 Port AUTO Negotiation AUTO MDI MDIX Network Media 10BASE-T: UTP category 3 4 5 cable maximum 100m EIA TIA-568 100Ω STP maximum 100m 100BASE-TX: UTP category 5 5e cable maximum 100m EIA TIA-568 100Ω STP maximum 100m 1000BASE-T: UTP category 5 5e 6 or above cable maximum 100m EIA TIA-568 100Ω STP maximum 100m Fan Quantity Fanless Power Supply External Power Adapter Output: 53.5 VDC 2.43 A PoE Ports RJ45 Standard: 802.3 af at compliant PoE Ports: Port 1- Port 8 PoE Power Budget: 123 W Dimensions W x D x H 8.2 × 4.9 × 1.0 in 209 × 126 × 26 mm Max Power Consumption 7.66 W 220V 50Hz with no PD connected 141.54 W 220V 50Hz with 123 W PD connected Max Heat Dissipation 26.12 BTU h 220V 50Hz with no PD connected 482.65 BTU h 220V 50Hz with 123 W PD connected PERFORMANCE Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps MAC Address Table 4 K Jumbo Frame 16 KB SOFTWARE FEATURES Quality of Service Support Port-Based 802.1p DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1 V2 V3 Static Link Agg
SKU TL-SG1210MPE
Barcode # 6935364052669
Brand TP-Link
Shipping Weight 3.0000kg
