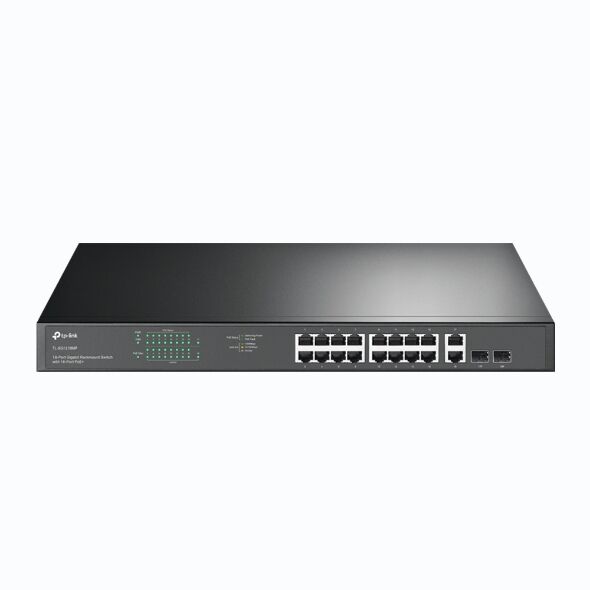

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16 PoE+ • 16× gigabit PoE+ RJ45 ports 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports* • Working with IEEE 802.3af at compliant PDs • Plug and play with no configuration and installation needed • 802.1p DSCP QoS enable smooth latency-sensitive traffic • Durable metal casing and professional heat dissipation design ensure a wide operating temperature range 0–50 ℃ HARDWARE FEATURES Standards and Protocols IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.1q IEEE 802.1p Interface • 16× PoE+ gigabit RJ45 ports • 2× gigabit non-PoE RJ45 ports • 2× combo gigabit SFP slots Network Media • 10BASE-T: UTP category 3 4 5 cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m • 100BASE-TX: UTP category 5 5e cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m • 1000BASE-T: UTP category 5 5e 6 or above cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m • 1000BASE-X MMF SMF Fan Quantity 2 Physical Security Lock Yes Power Supply 100–240 VAC 50 60 Hz PoE+ Ports RJ45 • Standard: 802.3at 802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W Dimensions W x D x H 17.3 × 7.1 × 1.73 in 440 × 180 × 44 mm Mounting Rack Mountable Max Power Consumption • 21.4 W 220 50 Hz. no PD connected • 286.64 W 220 50 Hz. with 250 W PD connected Max Heat Dissipation • 72.97 BTU h no PD connected • 977.44 BTU h with 250 W PD connected PERFORMANCE Switching Capacity 36 Gbps Packet Forwarding Rate 26.78 Mbps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Advanced Functions • Compatible With IEEE 802.3af at Compliant PDs • 802.1p DHCP QoS • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode Jumbo Frame 10 KB
SKU TL-SG1218MP
Barcode # 6935364072155
Brand TP-Link
Shipping Weight 3.0000kg
