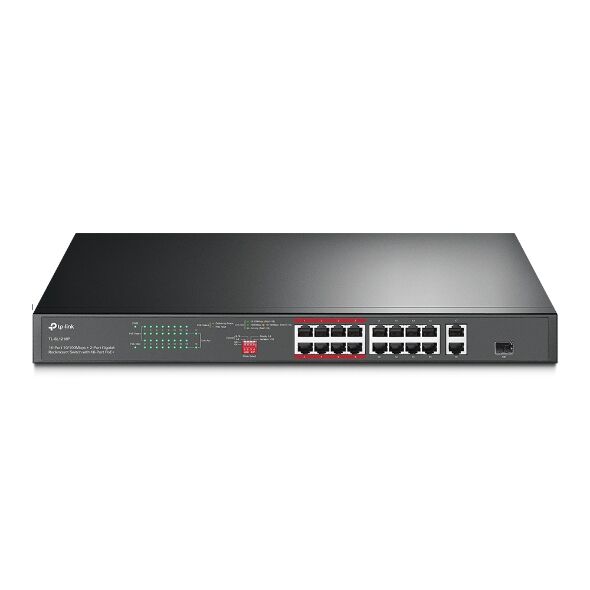

TP-Link TL-SL1218P 16-Port 10 100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ • 16× PoE+ 10 100 Mbps RJ45 ports 2× Gigabit RJ45 ports and 1× combo Gigabit SFP slot. • High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.* • Up to 250 m data and power transmission under extend mode specially designed for surveillance system.** • Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor. • Isolation Mode allows one-click client traffic separation for higher security and performance. • Easy to use with no configuration and installation needed. HARDWARE FEATURES Interface • 16× PoE+ 10 100 Mbps RJ45 Ports • 2× 10 100 1000 Mbps RJ45 Ports • 1× Combo Gigabit SFP Slot Network Media • 10BASE-T: UTP category 3 4 5 cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m • 100BASE-TX: UTP category 5 5e cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m • 1000BASE-T: UTP category 5 5e 6 or above cable maximum 100m • EIA TIA-568 100Ω STP maximum 100m • 1000BASE-X MMF SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100–240V AC 50 60 Hz PoE+ Ports RJ45 • Standard: 802.3at 802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 150 W Dimensions W x D x H 17.3 × 7.1 × 1.7 in 440 × 180 × 44 mm Max Power Consumption • 12.71 W 220 50Hz. no PD connected • 172.8 W 220 50Hz. with 150 W PD connected Max Heat Dissipation • 43.34 BTU h no PD connected • 589.25 BTU h with 150 W PD connected PERFORMANCE Switching Capacity 7.2 Gbps Packet Forwarding Rate 5.36 Mpps MAC Address Table 8K Jumbo Frame 10 KB SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3at af Compliant PDs • Extend Mode Up to 250m PoE power supply and data transmission • Priority Mode • Isolation Mode • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control Transmission Method Store-And-Forward
SKU TL-SL1218P
Barcode # 6935364052829
Brand TP-Link
Shipping Weight 3.0000kg
