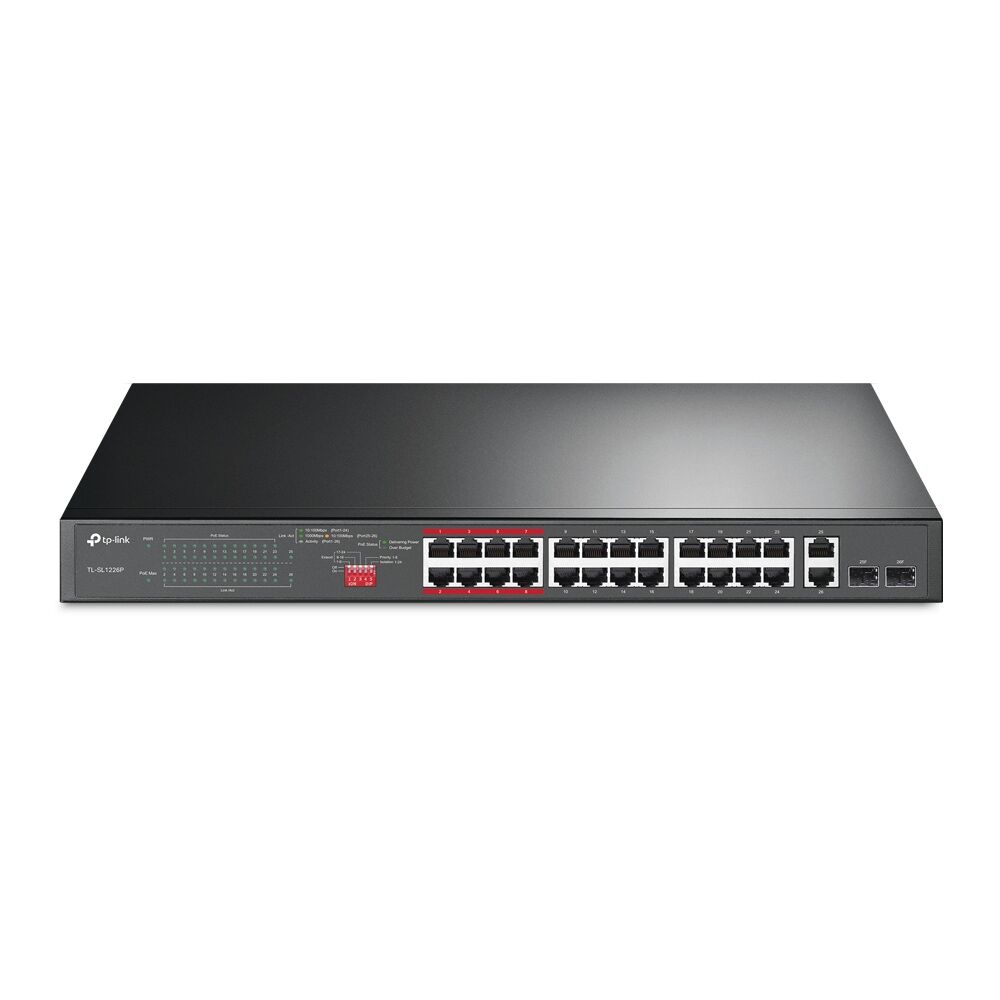

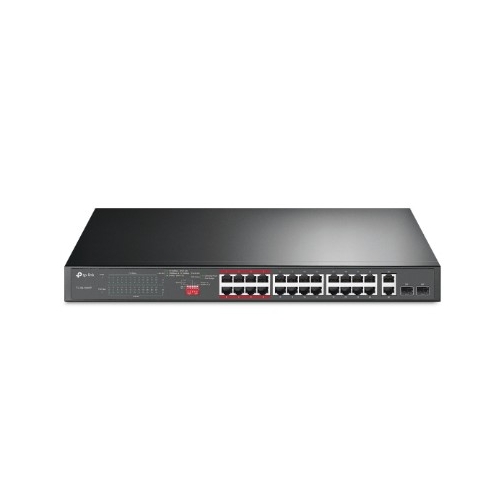

TL-SL1226P 24-Port 10 100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch • 24× PoE+ 10 100 Mbps RJ45 ports 2× Gigabit RJ45 ports and 2× combo Gigabit SFP slots • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports* • Up to 250 m data and power PoE transmission range under Extend Mode** ideal for surveillance system • Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor • Isolation Mode allows one-click client traffic separation for higher security and performance • Plug and play with no configuration and installation needed HARDWARE FEATURES Interface 24× PoE+ 10 100 Mbps RJ45 Ports 2× 10 100 1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots Network Media 10BASE-T: UTP category 3 4 5 cable maximum 100m EIA TIA-568 100Ω STP maximum 100m 100BASE-TX: UTP category 5 5e cable maximum 100m EIA TIA-568 100Ω STP maximum 100m 1000BASE-T: UTP category 5 5e 6 or above cable maximum 100m EIA TIA-568 100Ω STP maximum 100m 1000BASE-X MMF SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240 VAC 50 60 Hz Backup Bandwidth 8.8 Gbps PoE+ Ports RJ45 Standard: 802.3at 802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W Mac Address Table 8 K Dimensions W x D x H 17.3 × 7.1 × 1.7 in 440 × 180 × 44 mm Max Power Consumption 18.32 W 220 50 Hz. no PD connected 294 W 220 50 Hz. with 250 W PD connected Max Heat Dissipation 62.47 BTU h no PD connected 1002.54 BTU h with 250 W PD connected SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3at af Compliant PDs Extend Mode Up to 250m PoE power supply and data transmission Priority Mode Isolation Mode PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control
SKU TL-SL1226P
Barcode # 6935364089443
Brand TP-Link
Shipping Weight 3.0000kg
