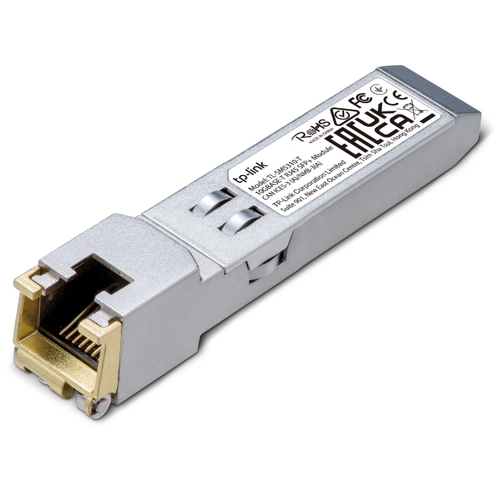

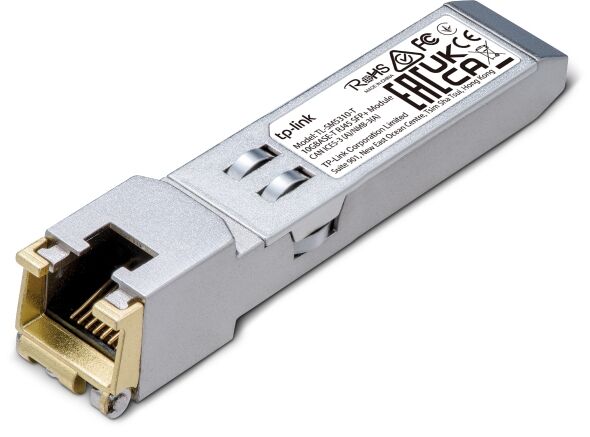

TP-Link TL-SM5310-T 10G BASE-T RJ45 SFP+ Module • Support 10GBASE-T 5GBASE-T 2.5GBASE-T 1000BASE-T and 100BASE-TX • Transmit data up to 30m* at 10 Gbps UTP cat.6a or above • Support DDM Temperature and Voltage • Hot-Pluggable SFP+ Footprint Features • Support TX Disable function • Commercial Product Operating Temperature Range: 0-70°C • Fully Metallic Enclosure for Low EMI PACKAGE CONTENTS Package Contents • 10G BASE-T RJ45 SFP+ Module TL-SM5310-T • Installation Guide HARDWARE FEATURES Hot Swappable Yes TRANSCEIVER Standards and Protocols IEEE Std 802.3 802.3ab 802.3bz 82.3an Power Supply 3.3V Max. Cable Length 100BASE-TX: UTP cat .5 or above max. 100m 1000BASE-T 2.5GBASE-T 5GBASE-T: UTP cat.5e or above max. 100m 10GBASE-T: UTP cat.6a or above max. 30m Data Rate 10.3 Gbps Port Type 1× 10G RJ45 Port Safety & Emission FCC CE RoHS Environment Operating Temperature: 0–70 ℃ 32–158 ℉ Storage Temperature: -40–85 ℃ -40–185 ℉
SKU TL-SM5310-T
Barcode # 4897098687758
Brand TP-Link
Shipping Weight 3.0000kg
