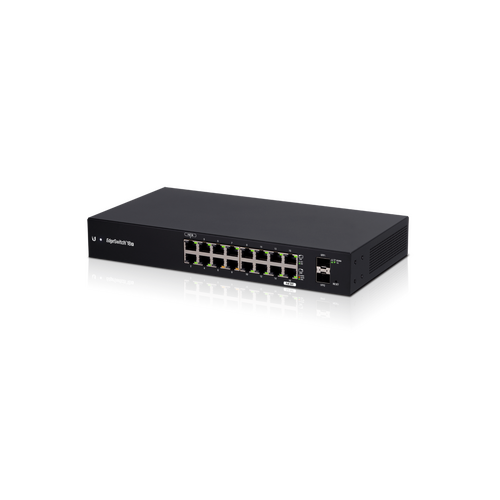

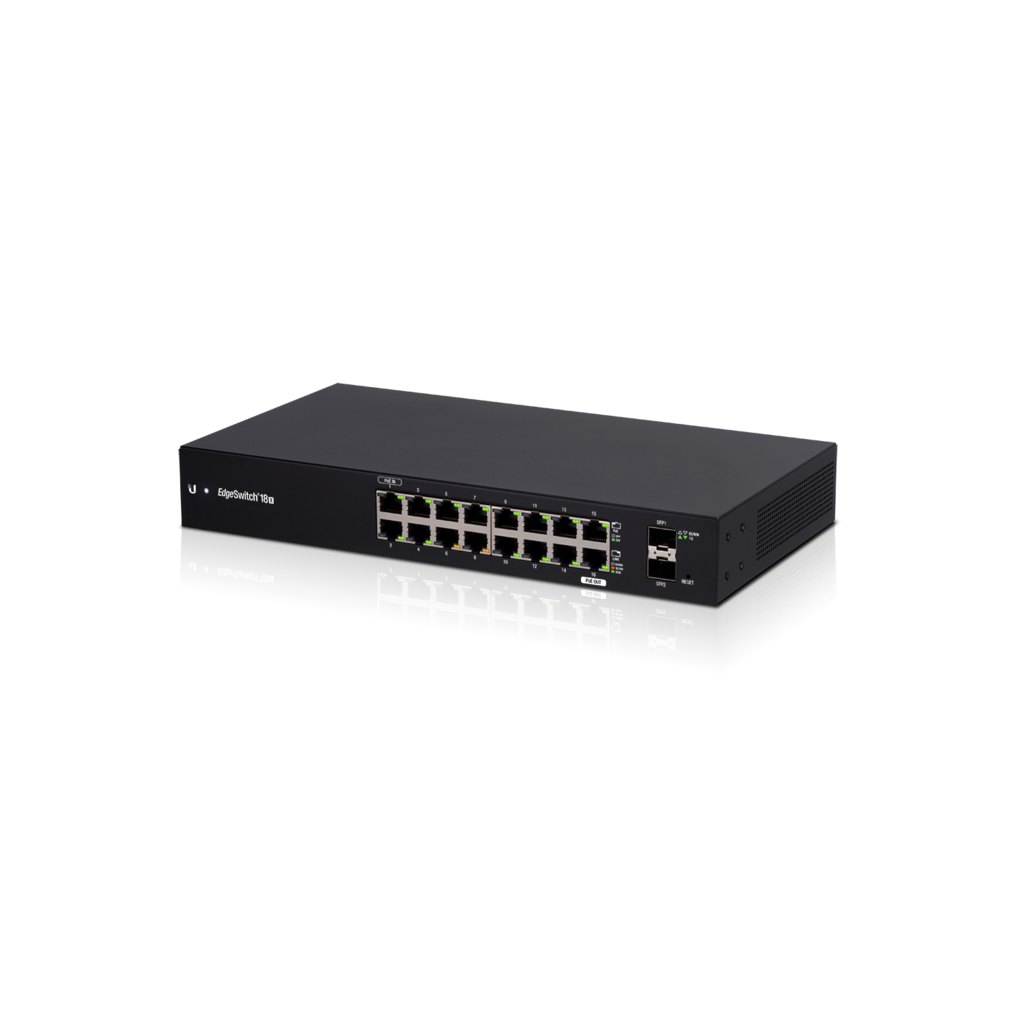

Ideal for larger-scale WISP applications, the EdgeSwitch® 18X is an affordable high-performance switch with SFP ports and a fanless design. Sixteen Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 16. Two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control. Management is also available through UISP. Features: (16) Gigabit RJ45 ports (2) SFP ports Supports PoE passthrough on port 16 (software-selectable) Powered by 24V passive PoE or external 24V AC/DC adapter Wall or rack-mountable (bracket included) Mechanical Dimensions 299.8 x 160 x 43.7 mm (11.8 x 6.3 x 1.7') Weight: Without Mount: 1.15 kg (2.54 lb) With Mount: 1.43 kg (3.15 lb) Enclosure Material Metal Mount Material Metal Hardware Total Non-Blocking Throughput 18 Gbps Switching Capacity 36 Gbps Forwarding Rate 26.78 Mpps Max. Power Consumption 14W (Excludes PoE Output) ESD/EMP Protection Air: ± 16 kV, Contact: ± 8 kV Power Method External AC/DC Adapter or 24V Passive PoE Power Supply 24VDC, 1.0A Power Adapter (Included) 24V Passive PoE Supported Voltage Range 9 - 30VDC Networking Interfaces (16) 10/100/1000 Mbps Ethernet RJ45 Ports (2) 1 Gbps SFP Ports PoE Interfaces (1) 24V Passive PoE Port (Pins 4, 5+; 7, 8-) Management Interface Ethernet In-Band Passive PoE Max Wattage per Port 15W Passive PoE Voltage Range 24V Operating Temperature -10 to 50° C (14 to 122° F) Operating Humidity 10 - 90% Noncondensing Certifications CE, FCC, IC Software Mode Layer 2 Ethernet Switch VLAN 4K VLANs QoS (16) Priority Queues per User Port and Traffic Classification Jumbo Frame 10 KB PoE Enable/Disable Passive PoE Other TFTP Recovery Ubiquiti Specific Features Ubiquiti Discovery Minimum Software Requirements Web Browser (Chrome Recommended)

SKU ES-18X
Barcode # 817882029971
Brand Ubiquiti
Shipping Weight 3.0000kg
