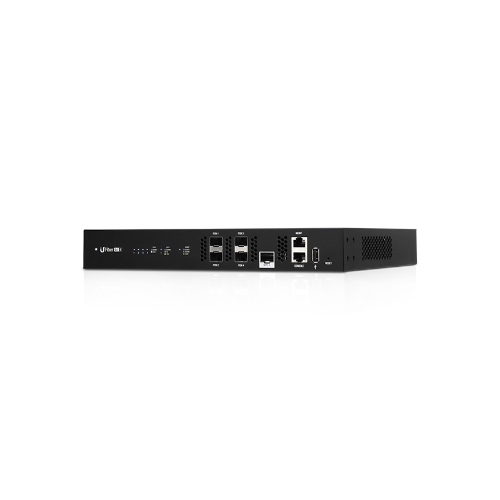

Ubiquiti 256 Client Capacity GPON OLT with UNMS Management System

  • 4-Port GPON Optical Line Terminal
  • 4 Gigabit Passive Optical Network Ports
  • Supports up to 512 Clients (128 per PON Port)
  • Up to 2.488 Gbps TX and 1.244 Gbps RX
  • One 1G/10G SFP+ Ethernet Ports
  • Flexible Layer 2/3 Management Features
  • Ethernet port for management
  • Console serial port for management
  • 24V DC Input Option (Redundant or Stand-Alone)



Dimensions

  • 299.8 X 258.95 X 42.55 mm
  • Weight
  • 1930g (without hangers)
  • 2130g (with hangers)
  • Enclosure Characteristics
  • SGCC steel


HARDWARE

  • Processor - MIPS 1004Kc 880 Mhz dual core
  • Memory- 512 Mbyte DDR3, 512M Byte NAND
  • Management Interface
  • (1) Ethernet out-of-band management
  • (1) Ethernet in-band management
  • (1) RJ45 Serial Console Port
  • Networking Interface
  • (4) GPON OLT SFP
  • (1) 10 Gbps SFP+
  • Buttons (1) Reset, Press 5 seconds - Reset to default
  • LEDs/Display (1) Power: Blue/White
  • Blinking Blue: reset to default
  • Steady Blue: system is booting
  • Steady White: service is ready
  • (4) GPON OLT SFP
  • Steady/Blinking white : GPON link/activity
  • (1) SFP+ Ethernet: White(10G) Green(1G), steady on after link is up, blinking while activity
  • (1) Ethernet RJ45 Out-of-band Management: Green(1G), steady on after link is up, blinking while activity



  • Power Method 100-240VAC/50-60 Hz universal input / 25VDC
  • Power Supply AC/DC internal 56W DC / DC barrel jack connector
  • Supported Voltage Range AC input: 100 to 240 VAC / 25 to 16VDC
  • Max. Power Consumption 35W (Excluding SFP modules)
  • Operating Temperature -10 to 45°C (14 to 113°F)
  • Operating Humidity 10% to 90% Non-Condensing

SOFTWARE

  • Mode OLT 2/3 Ethertnet Switch and GPON Core
  • Advanced QoS Support 8 priority queues per user port and traffic classification
  • Concurrent Clients 512 ONUs/ONTs registered
  • Ubiquiti Specific Features UBNT Discovery and UBNT mcagent
  • Minimum Software Requirements Any Modern Web Browser
SKU UF-OLT-4
Barcode # 817882023672
Brand Ubiquiti
Shipping Weight 3.0000kg
